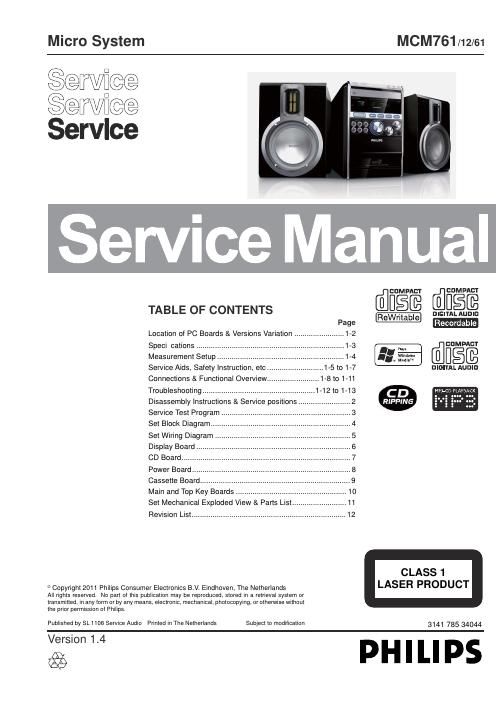

Philips mcm 761 service manual
This is the 37 pages manual for philips mcm 761 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips mcm 761 service manual (Ocr-read)
Page 1
1-2 LACATION OF PCBS VERSION VARIATIONS : Type /Versions: Features Board in used:MCM761 Service policy * TIPS : C -- Component Lever Repair. M -- Module Lever Repair ¥ -- Used /05 /61 Feature diffrence RDS VOLTAGE SELECTOR ECO STANDBY - DARK Type /Versions: DISPLAY BOARD TOP KEY BOARD TUNER BOARD CASS BOARD POWER BOARD MAIN BOARD /12 /37 /98 C C/M C M C C C/M C/M M C C/M MCM761 /05 /61 /12 /37 /98 ¥ ¥ ¥ CD BOARD C/M CC
Page 2
1-3 GENERAL: Mains voltage : 1 10-127V/220-240V Switchable for /98 117V ± 10% for /37 220V ± 10% for /61 230 ± 10% for /05/12 Mains frequency : 50/60Hz Power consumption : 55W at 1/8 P rated < 15W at Standby (Demo mode off) < 0 W at ECO Standby Clock accurac y : < 4 seconds per day Dimension centre unit : : 340 x 179 x 252 mm ( L x D x H ) TUNER: FM Tuning range : 87.5-108MHz Grid : 50kHz 100kHz for /37 IF frequency : 10.7MHz ± 25kHz Aerial input : 75 ohm coaxial 300 ohm click fit for /37 Sensitivity at 26dB S/N : < 22uV Selectivity at 600kHz bandwidth : > 25dB Image rejection : > 25dB [> 75dB] Distortion at RF=1mV, dev. 75kHz : < 3% -3dB Limiting point : < 23.5dBf Crosstalk at RF=1mV, dev. 40kHz : > 18dB MW Tuning range : 531-1602kHz 530-1700kHz for /98/37 Grid : 9kHz 10kHz for /98/37 IF frequency : 450kHz ± 1kHz Aerial input : Frame aerial Sensitivity at 26dB S/N : < 22uV Selectivity at 18kHz bandwidth : > 18dB IF rejection : > 45dB Image rejection : > 28dB Distortion at RF=50mV, M=80% : < 5% AMPLIFIER: Output power (6 ohm, 1kHz, 10% THD) L & R : 2 x 75W RMS Frequency response within -3dB : 60Hz-16kHz Bass : 60Hz ± 3 Steps Treble : 12kHz ± 3 Steps Incredible Surround : On / OffInput sensitivity Aux in (at 1kHz) : 500mV at 600 ohm CD (Audio Disc1) : -6dB track (Trk 35) Output sensitivity Headphone output at 32 ohm : 15mW ± 2dB (Max. vol.) CASSETTE RECORDER: Number of track : 2 tracks (stereo) Tape speed : 4.76 cm/sec ± 2% Wow and flutter : < 0.4% DIN Fast-wind/Rewind time C60 : 130 sec Bias system : 78kHz ± 10kHz Rec/Pb frequency response within 8dB : 80Hz - 10kHz Signal to Noise Ratio (Type I) : > 48dBA Signal to Noise Ratio (Type II) : > 52dBA COMPACT DISC: Measurement done directly at the connector on the board. Output Resistance : < 100 ohm Output Voltage (0dB, 1kHz) : 0.5Vrms ± 1dB (unloaded) Channel Unbalance : < ±1dB Channel Separation (1kHz) : > 60dB Frequency Response (±3dB) : 20Hz-20kHz Signal to Noise Ratio : > 76dBA MP3-CD Bit Rate : 8-320 kbps Sampling Frequencies : 8,11.025,12,16,22.05,24, 32,44.1,48kHz [....] Values indicated are for "ECO6 Cenelec Board" only. USB : -6dB track WMA-CD Bit Rate : 64-192kbps Recording Format : ISO9660 UDF format not supported USB: Measurement done at speaker terminals across 6 :load w/ 500mW output and DSC setting in Jazz Mode. Frequency response within ±3dB : 100Hz - 16kHz Signal/Noise ratio (A-weighted) : > 60dBA Channel crosstalk at 1kHz : > 35dB Channel unbalance at 1kHz : ±3dB SPECIFICATIONS
