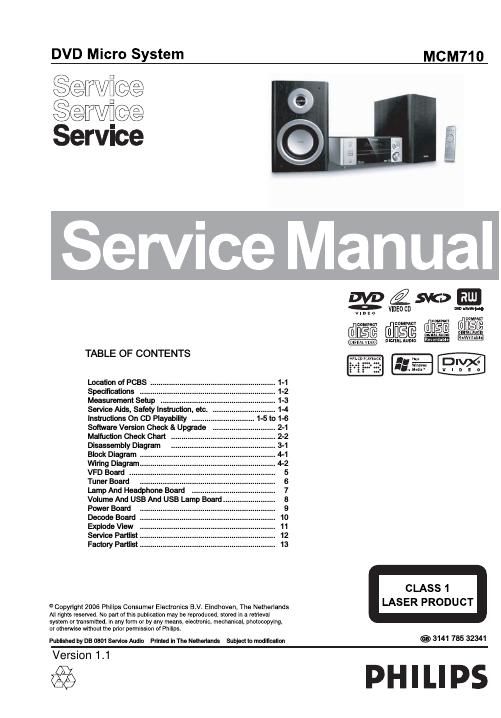

Philips mcm 710 service manual
This is the 34 pages manual for philips mcm 710 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips mcm 710 service manual (Ocr-read)
Page 1
LOCATION OF PC BOARDSVERSION VARIATIONS: Type /Versions: Features & Board in used: MCM710 /12 1-1 POWER BOARD VOLUME BOARD DISPLAY BOARD HEADPHONE BOARD DECODER BOARD Service policy VFD BOARD TUNER BOARD LAMP BOARD HEADPHONE BOARD VOLUME BOARD USB BOARD USB LAMP BOARD POWER BOARD DECODE BOARD * TIPS : C -- Component Lever Repair. M -- Module Lever Repair X -- Not used C M M M M M M M M
Page 2
AMPLIFIER Rated Output Power .......................... 2 x 45 W RMS Signal-to-noise ratio ........................... - 65 dBA Frequency response ........... 20 Hz – 20 KHz, ± 3 dB Aux Input ........................................ 1V RMS 20kohm DISC Laser Type .......................................... Semiconductor Disc Diameter ............................................ 12cm/8cm Suppor t Disc .............................................................. .................. CD-DA,CD-R,CD-RW,MP3-CD,WMA-CD Audio DAC ....................................... 24Bits / 44.1kHz Total Harmonic Distor tion ..................... <0.1%(1kHz) Frequency Response ............ 4Hz - 20kHz (44.1kHz) S/N Ration .................................................... >65dBA T UNER FM Tuning Range ............................. 87.5 – 108 MHz Tuning grid ..................................................... 50KHz Sensitivity – Mono, 26dB S/N Ratio ..................................... 5uV – Stereo, 46dB S/N Ratio ................................ 100uV Selectivity ........................................................ >28dB Image Rejection .............................................. >25dB Total Harmonic Distor tion ................................... <3% Signal to Noise Ration .................................. >55dBA SPEAKERS Speaker Impedance ................................................ 4ohm Speaker Driver, base ..................................................... 5" Speaker Driver, tweeter .............................................. 0.2" Frequency Response ................................... 60 - 20 KHz GENERAL INFORMATION Total Output power ..................................... 2 x 50 W RMS AC Power ..................................... 220-230 V / 50Hz/60Hz Operation Power Consumption ................................. 52W Standby Power Consumption ..................................... <7W Eco Standby Power Consumption ............................... 1W Headphone Output ................................ 2X15mW 32ohm USB Direct ...................................................... Version 1.1 Dimensions – Main unit (w x h x d) ........................... 248x110x307mm – Speaker box (w x h x d) ..................... 170x270x220mm Weight –With Packing ..................................................... 10 KG –Main Unit ............................................................ 2.3 KG –Speaker box ....................................................... 2.6 KG Specifications and external appearance are subject to change without notice. 1-2 SPESIFICATION
