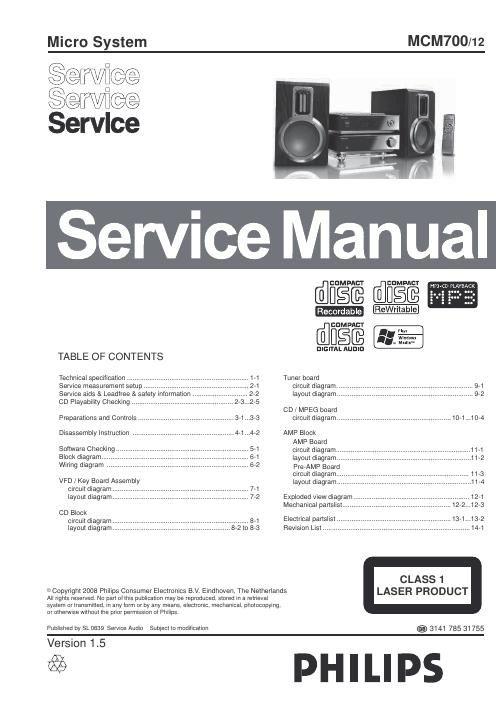

Philips mcm 700 service manual
This is the 34 pages manual for philips mcm 700 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips mcm 700 service manual (Ocr-read)
Page 2
SPECIFICATION
AMPLIFIER
Output power ....................................... 2 x 50W RMS
Signal7t07noise ratio ....................................... Z 70 dBA
Frequency response ...... 20 Hz 7 20 KHZ, i 3 dB
Input sensitivity AUX ...........
Impedance loudspeakers
Impedance headphones
Output power headphones ..
CD PLAYER
Frequency range ................................ 20 Hz 7 20 kHz
Signal7to7noise ratio ............................................ 70 dBA
TUNER
FM wave range ................................... 87.5 7108 MHZ
Sensitivity at 75 Q
7 FM ................................................................................ ZOdBf
Selectivity .................................... 2 25 dB
Total harmonic distortion .. ...... S 1%
Frequency response
7 FM .............................................................. 63 7 6000 Hz
Signal7to7noise7ratio
7 FM ....................................................................... 2 50 dBA
USB PLAYER
USB ................................................................... 12Mb/s,V1.1
......................................... support MP3 and WMA files
Number of albums/folders ................. maximum 99
Number of tracks/titles ...................... maximum 400
SPEAKERS
Bass reflex system
Dimensions (w x h x d) .145 x 230 x 215 (mm)
GENERAL INFORMATION
AC Power ..................................... 230 7 240V / 50 Hz
Dimensions (w x h x d) .208 x 156 x 268 (mm)
Weight(with/without speakers) ...... 4.30 / 2.31 kg
Standby power consumption ............................ <7W
Eco power standby ................................................. <1 W
Specifications and external appearance are
subject to change without notice.
