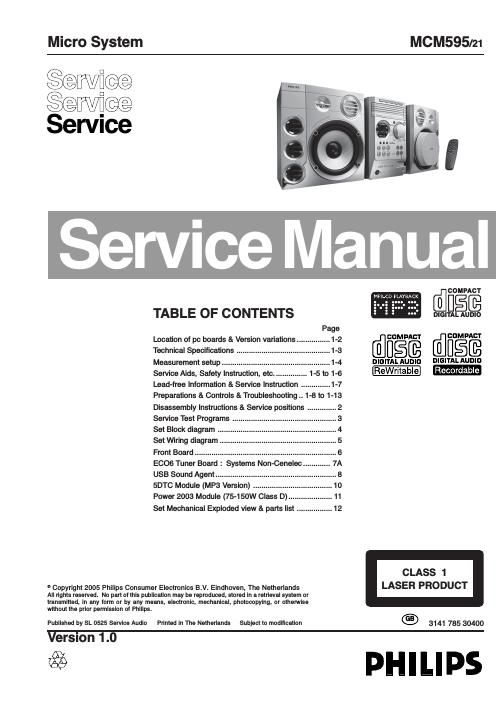

Philips mcm 595 service manual
This is the 66 pages manual for philips mcm 595 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips mcm 595 service manual (Ocr-read)
Page 1
5DT C M P3 B O ARD MAINS BOARD MAINS SOCKET BOARD TUNER BOARD COMBI BOARD 5D TC C D BO ARD BO ARD 5D TC C ON TRO L CDC KEY BOARD FRONT BOARD USB PC LINK BOARD 1-2 LOCATION OF PRINTED CIRCUIT BOARDS /21 Aux in / CDR in x Line Out V ideo Out Surround Out Subwoofer Out Power Booster Out Digital Out Digital in Matrix Surround RDS News Dolby Pro Logic (DPL) Incredible Surround Karaoke Features V oltage Selector x ECO Power Standby (Clock Display Off) x ECO6 Tuner Board - Systems Non-Cenelec x ECO6 Tuner Board - Systems Cenelec USB PC LINK x VERSION VARIATIONS: T ype /Versions: MCM595 Features & Board in used:
Page 2
1-3 SPECIFICA TIONS GENERAL: Mains voltage : 110-127V/220-240V Switchable for /21 Mains frequency : 50/60Hz Clock accuracy : < 4 seconds per day Dimension centre unit : 175 x 268 x 316mm Power consumption Active : 120W Standby : < 15W (DEMO mode off) ECO Power Standby : < 1W TUNER: FM T uning range : 87.5-108MHz Grid : 50kHz IF frequency : 10.7MHz ± 25kHz Aerial input : 75 ohm coaxial Sensitivity at 26dB S/N : < 7uV Selectivity at 600kHz bandwidth : > 25dB Image rejection : > 25dB [> 75dB] Distortion at RF=1mV, dev. 75kHz : < 3% -3dB Limiting point : < 8uV Crosstalk at RF=1mV, dev. 40kHz : > 18dB MW T uning range : 530-1700kHz Grid : 10kHz IF frequency : 450kHz ± 1kHz Aerial input : Frame aerial Sensitivity at 26dB S/N : < 4.4mV/M Selectivity at 18kHz bandwidth : > 18dB IF rejection : > 45dB Image rejection : > 28dB Distortion at RF=50mV, M=80% : < 5% AMPLIFIER: Output power (4 ohm, 1kHz, 10% THD) L & R : 2 x 150W RMS Frequency response within -3dB : 60Hz-16kHz MAX Sound : On / Off Digital Sound Control (DSC) : Jazz / Rock / Pop / Optimal V irtual Environment Control (VEC) : Cyber Hall / Concert / Cinema / Off Input sensitivity Aux in (at 1kHz) : 500mV at 600 ohm CDR in (at 1kHz) : 1000mV at 600 ohm USB (at 1kHz) : 830mV at 600 ohm Output sensitivity Headphone output at 32 ohm : 700mV ± 2dB (Max. vol.) 5DTC: Measurement done directly at the connector on the board. Output Resistance : < 100 ohm Output Voltage (0dB, 1kHz) : 0.5Vrms ± 1dB (unloaded) Channel Unbalance : < ±1dB Channel Separation (1kHz) : > 60dB Frequency Response ( ±3dB) : 20Hz-20kHz Signal to Noise Ratio : > 76dBA MP3-CD Bit Rate : 32-256 kbps Sampling Frequencies : 32, 44.1, 48 kHz USB: Measurement done directly at the connector on the board. Output Resistance : < 1.5 kohm Output Voltage (0dB, 1kHz) : 830mVrms ± 1.5dB (R L = 33 kohm) Channel Unbalance : < ±1dB THD + Noise (0dB, 1kHz) : < 0.35% Channel Separation (0dB, 1kHz) : > 40dB Frequency Response ( ±3dB) : 50Hz-16kHz Signal to Noise Ratio : > 75dBA [....] Values indicated are for "ECO6 Cenelec Board" only.
