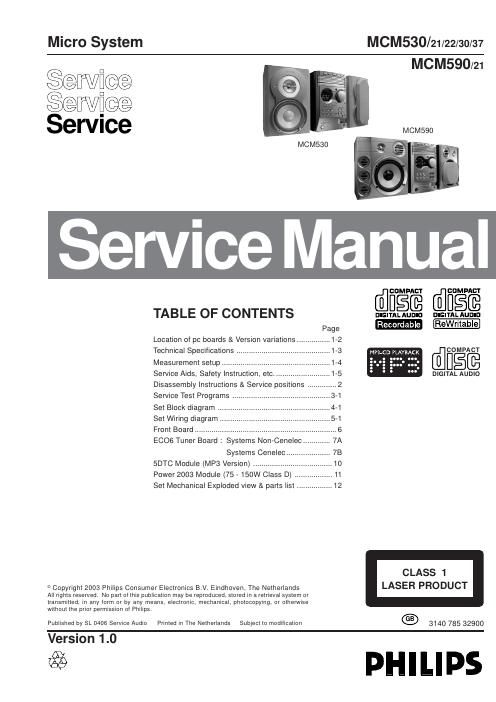

philips mcm 530 590 service manual

Extracted text from philips mcm 530 590 service manual (Ocr-read)

Page 1

5DTC MP3 BOARD MAINS BOARD MAINS SOCKET BOARD TUNER BOARD COMBI BOARD 5D TC C D BO AR D B O A RD 5D TC C ON TRO L CDC KEY BOARD FRONT BOARD USB PC LINK BOARD 1-2 LOCATION OF PRINTED CIRCUIT BOARDS /21/21T /22 /30 /37 /21 Aux in / CDR in x x x x x x Line Out Video Out Surround Out Subwoofer Out Power Booster Out Digital Out Digital in Matrix Surround RDS x News x Dolby Pro Logic (DPL) Incredible Surround Karaoke Features Voltage Selector x x x ECO Power Standby (Clock Display Off) x x x x x x ECO6 Tuner Board - Systems Non-Cenelec x x x x x ECO6 Tuner Board - Systems Cenelec x USB PC LINK x x x x x x VERSION VARIATIONS: Type /Versions: MCM530 MCM590 Features & Board in used:

Page 2

1-3 SPECIFICA TIONS GENERAL: Mains voltage : 110-127V/220-240V Switchable for /21 120V ± 10% for /37 230V ± 10% for /22 230-240V for /30 Mains frequency : 50/60Hz Clock accuracy : < 4 seconds per day Dimension centre unit : 175 x 268 x 316mm Power consumption Active : 60W for MCM530/22/30/37 Active : 69W for MCM530/21 Active : 110W for MCM590/21 Standby : < 15W (DEMO mode off) ECO Power Standby : < 0.5W for /22/30/37 ECO Power Standby : < 1W for /21 TUNER: FM Tuning range : 87.5-108MHz Grid : 50kHz 100kHz for /21/37 IF frequency : 10.7MHz ± 25kHz Aerial input : 75 Ω coaxial 300 Ω click fit for /37 Sensitivity at 26dB S/N : < 7µV Selectivity at 600kHz bandwidth : > 25dB Image rejection : > 25dB [> 75dB] Distortion at RF=1mV, dev. 75kHz : < 3% -3dB Limiting point : < 8µV Crosstalk at RF=1mV, dev. 40kHz : > 18dB MW Tuning range : 531-1602kHz 530-1700kHz for /21/37 Grid : 9kHz 10kHz for /21/37 IF frequency : 450kHz ± 1kHz Aerial input : Frame aerial Sensitivity at 26dB S/N : < 4.4mV/M Selectivity at 18kHz bandwidth : > 18dB IF rejection : > 45dB Image rejection : > 28dB Distortion at RF=50mV, M=80% : < 5% AMPLIFIER: Output power L & R : 2 x 75W RMS (6Ω, 1kHz, 10% THD) :2 x 125W RMS (4Ω, 1kHz, 10% THD) for MCM590/21 Output power (6 Ω, 60Hz-12.5kHz, 10% THD) L & R : 2 x 70W FTC for MCM530/37Frequency response within -3dB : 50Hz-16kHz MAX Sound : On / Off Digital Sound Control (DSC) : Jazz / Rock / Pop / Optimal Virtual Environment Control (VEC) : Cyber Hall / Concert / Cinema / Off Input sensitivity Aux in (at 1kHz) : 500mV at 600 Ω CDR in (at 1kHz) : 1000mV at 600 Ω USB (at 1kHz) : 830mV at 600 Ω Output sensitivity Headphone output at 32 ohm : 15mW ± 2dB (Max. vol.) 5DTC: Measurement done directly at the connector on the board. Output Resistance : < 100 Ω Output Voltage (0dB, 1kHz) : 0.5Vrms ± 1dB (unloaded) Channel Unbalance : < ±1dB Channel Separation (1kHz) : > 60dB Frequency Response (±3dB) : 20Hz-20kHz Signal to Noise Ratio : > 76dBA MP3-CD Bit Rate : 32-256 kbps Sampling Frequencies : 32, 44.1, 48 kHz USB: Measurement done directly at the connector on the board. Output Resistance : < 1.5 kΩ Output Voltage (0dB, 1kHz) : 830mVrms ± 1.5dB (R L = 33 kohm) Channel Unbalance : < ±1dB THD + Noise (0dB, 1kHz) : < 0.3% Channel Separation (0dB, 1kHz) : > 40dB Frequency Response (±3dB) : 20Hz-20kHz Signal to Noise Ratio : > 75dBA [....] Values indicated are for "ECO6 Cenelec Board" only.
