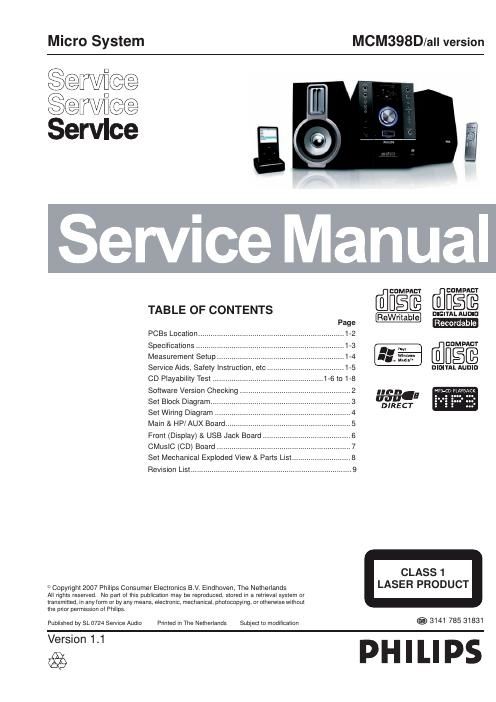

Philips mcm 398 d service manual

Page 2

1-3 AMPLIFIER Output power ........................................................................\ ............... 2 x 50 W RMS / 2 x100 W music power Signal-to-noise ratio .......................... t 62 dBA (IEC) Frequency response ......... 40 – 15000 Hz, ± 3 dB Impedance loudspeakers ......................................... 6 : Impedance headphones ........................................ 32 : CD/MP3/WMA-CD PLAYER Number of programmable tracks ......................... 20 Frequency range .................................. 20 – 20000 Hz Signal-to-noise ratio ............................................ 75 dBA Channel separation .......................... t 60 dB (1 kHz) Total harmonic distor tion ........................... < 0.003% MPEG 1 Layer 3 (MP3-CD) .......... MPEG AUDIO MP3-CD bit rate ....................................... 32-256 kbps (128 kbps advised) Sampling frequencies ............ ...........32, 44.1, 48 kHz USB PLAYER USB ................................................................. 12 Mb/s, V1.1 ......................................... suppor t MP3 and WMA files Number of albums/folders ................. maximum 99 Number of tracks/titles ...................... maximum 500 FM FM wave range ................................... 87.5 – 108 MHz Sensitivity at 75 : – mono, 26 dB signal-to-noise ratio ............ 2.8 µV – stereo, 46 dB signal-to-noise ratio ........ 61.4 µV Selectivity ................................................................. t 28 dB Total harmonic distor tion ..................................... d 5% Frequency response ..... 63 – 12500 Hz (± 3 dB) Signal-to-noise-ratio ...................................... t 50 dBA SPEAKERS 2-way Bass reflex system Dimensions (w x h x d) . 140 x 228 x 247 (mm) GENERAL INFORMATION AC Power ..................................... 220 – 230 V / 50 Hz Dimensions (w x h x d) .. 152 x 228 x 273 (mm) Weight (with/without speaker s) ............................................................... approx. 6.2/3.65 kg Eco Power Standby ............................................... < 1 W Power consumption Standby ....................... < 12 W SPECIFICATIONS
