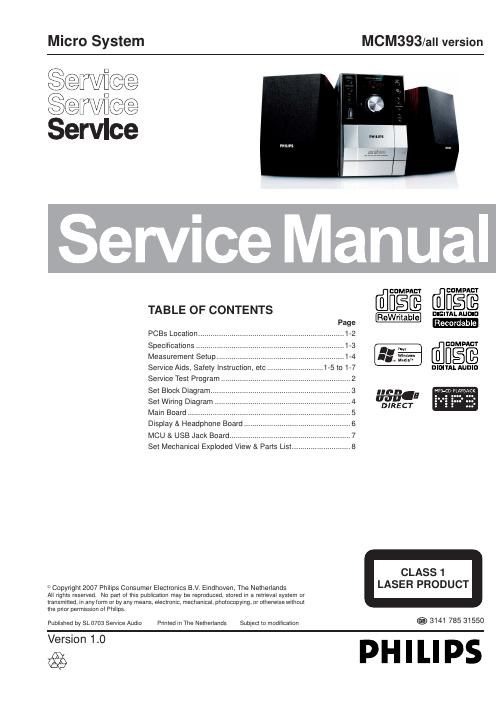

Philips mcm 390 service manual

Page 2

1-3 AMPLIFIER Output power ....................................... 2 x 15 W RMS ............................................................ 30 W + 30 W MPO Signal-to-noise ratio ..........................t 62 dBA (IEC) Frequency response ......... 40 – 15000 Hz, ± 3 dB Impedance loudspeakers ......................................... 4 : Impedance headphones .................... 32 : -1000 : CD/MP3-CD PLAYER Number of programmable tracks ......................... 20 Frequency range .................................. 20 – 20000 Hz Signal-to-noise ratio ............................................ 75 dBA Channel separation ..........................t 60 dB (1 kHz) Total harmonic distor tion ........................... < 0.003% MPEG 1 Layer 3 (MP3-CD) .......... MPEG AUDIO MP3-CD bit rate ....................................... 32-256 kbps (128 kbps advised) Sampling frequencies .......................32, 44.1, 48 kHz USB PLAYER USB ................................................................... 12Mb/s, V1.1 ......................................... suppor t MP3 and WMA files Number of albums/folders ................. maximum 99 Number of tracks/titles ...................... maximum 500 TUNER FM wave range ................................... 87.5 – 108 MHz MW wave range ................................ 531 – 1602 kHz Sensitivity at 75 : – mono, 26 dB signal-to-noise ratio ............ 2.8 µV – stereo, 46 dB signal-to-noise ratio ........ 61.4 µV Selectivity .................................................................t 28 dB Total harmonic distor tion .....................................d 5% Frequency response ..... 63 – 12500 Hz (± 3 dB) Signal-to-noise-ratio ......................................t 50 dBASPEAKERS 2-way Bass reflex system Dimensions (w x h x d) . 140 x 228 x 212 (mm) GENERAL INFORMATION AC Power ..................................... 220 – 230 V / 50 Hz Dimensions (w x h x d) .. 152 x 228 x 273 (mm) Weight (with/without speaker s) ............................................................... approx. 4.8 / 2.3 kg Eco Power Standby ............................................... < 1 W Power consumption Standby .......................... < 3 W Specifications and external appearance are subject to change without notice. SPECIFICATIONS
