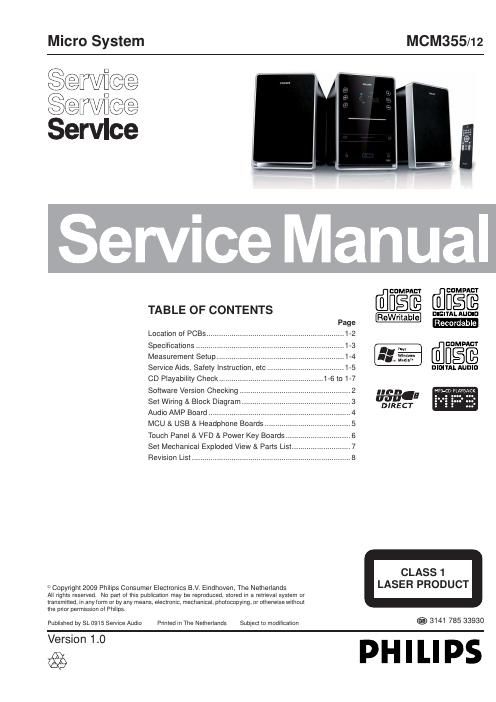

Philips mcm 355 service manual

Page 2

Specifications Amplifier Rated Output Power 4X50W RMS Frequency Response 63 - 14000 Hz, ±3dB Signal to Noise Ratio >62dB Disc Laser Type Semiconductor Disc Diameter 12cm/8cm Suppor t Disc CD-DA, CD-R, CD-RW, MP3-CD, WMA-CD Audio DAC 24Bits / 44.1kHz To t a l H a r m o n i c Distor tion <1% Frequency Response 63Hz - 14kHz S/N Ratio >65dBA Tuner (FM) Tuning Range 87. 5 - 108 MHz Tuning grid 50 KHz Sensitivity - Mono, 26dB S/N Ratio <22 dBu Search Selectivity <28 dBu Total Harmonic Distor tion <3% Signal to Noise Ratio >45 dB Speakers Speaker Impedance 6ohm General information AC power 220 - 230V, 50Hz Operation Power Consumption 42W Standby Power Consumption <20W Eco Standby Power Consumption <0.8W Dimensions - Main Unit ( W x H x D) - Speaker Box ( W x H x D)173 x 257 x 24 0 mm 173 x 257 x 24 0 mm Weight - With Packing - Main Unit - Speaker Box10.8 kg 2.3 kg 2 x 2.8 kg USB playability information Compatible USB devices: USB fl ash memor y (USB 2.0 or - USB1.1) USB flash players (USB 2.0 or - USB1.1) memory cards (requires an additional - card reader to work with this MCM355) Supported formats: USB or memor y fi le format FAT12, - FAT16, FAT32 (sector size: 512 by tes) MP3 bit rate (data rate): 32-320 Kbps - and variable bit rate WMA v9 or earlier - Directory nesting up to a maximum - of 8 levels Number of albums/ folders: - maximum 99 Number of tracks/titles: maximum - 999 ID3 tag v2.0 or later - File name in Unicode UTF8 - (maximum leng th: 128 by tes) Unsupported formats: Empty albums: an empty album is an - album that does not contain MP3/ WMA fi les, and is not be shown in the display. Unsuppor ted file formats are - skipped. For example, Word documents (.doc) or MP3 ?files with ex tension .dlf are ignored and not played. AAC, WAV, PCM audio ? files - DRM protected WMA ? files (.wav, - .m4a, .m4p, .mp4, .aac) WMA fi les in Lossless format - Supported MP3 disc formats ISO9660, Joliet - Maximum title number: 512 (depending - on file name length) Maximum album number: 255 - Suppor ted sampling frequencies: 32 kHz, - 44.1kHz, 48 kHz Suppor ted Bit-rates: 32~256 (kbps), - variable bit rates 1-3
