Philips mcm 350 service manual

This is the 64 pages manual for philips mcm 350 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 64

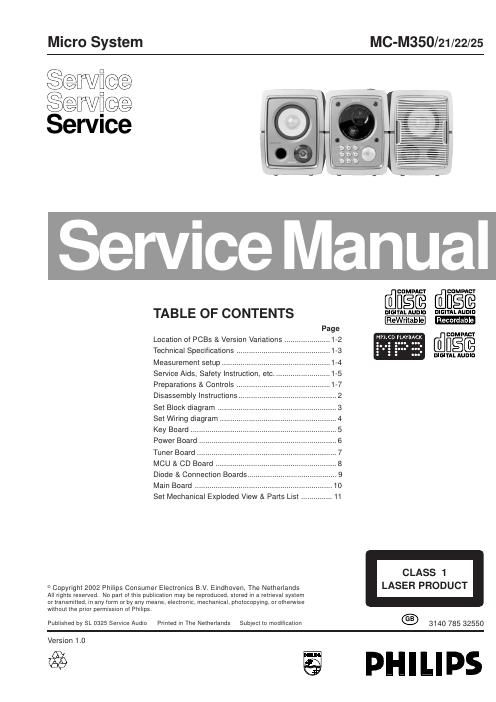

Extracted text from philips mcm 350 service manual (Ocr-read)

Page 1

1-2 LOCATION OF PRINTED CIRCUIT BOARDS VERSION VARIATIONS MAIN BOARD TUNER BOARD POWER BOARD MCU & CD BOARD KEY BOARDDIODE BOARD Type/Versions MC-M350 Features & Board in used RDS function Aux Input ECO Standby Digital Coaxial Outxx x x x Subwoofer Out Line Out Headphone Out/21/25 x x /22 AC Voltage Selectorx Non-Cenelec Tuner Cenelec Tunerx x x x x x
