Philips mcm 238 service manual

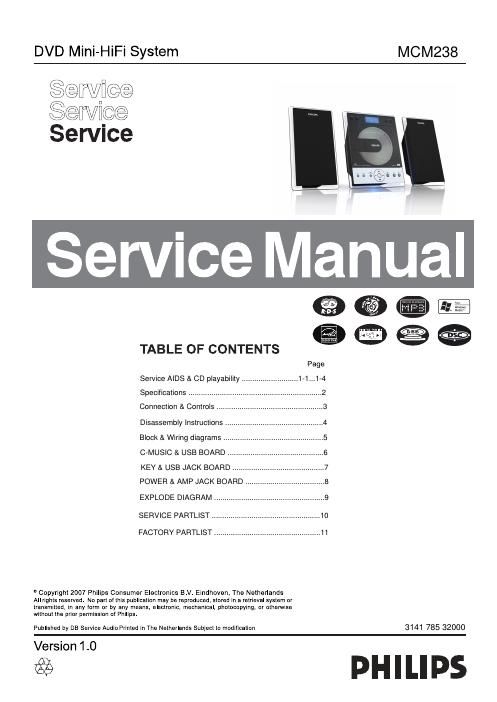

Page 1

1-1Service Tools: Universal Torx driver holder .................................4822 395 91019 Torx bit T10 150mm ...........................................4822 395 50456 Torx driver set T6-T20 .........................................4822 395 50145 Torx driver T10 extended .....................................4822 395 50423Compact Disc: SBC426/426A Test disc 5 + 5A ...........................4822 397 30096 SBC442 Audio Burn-in test disc 1kHz .................4822 397 30155 SBC429 Audio Signals disc .................................4822 397 30184 Dolby Pro-logic Test Disc ....................................4822 395 10216SERVICE AIDSGBWARNINGAll ICs and many other semi-conductors are susceptible to electrostatic discharges (ESD). Careless handling during repair can reduce life drastically. When repairing, make sure that you are connected with the same potential as the mass of the set via a wrist wrap with resistance. Keep components and tools also at this potential.ESDCLASS 1 LASER PRODUCTGBSafety regulations require that the set be restored to its original condition and that parts which are identical with those specified, be used Safety components are marked by the symbol !.Lead free
