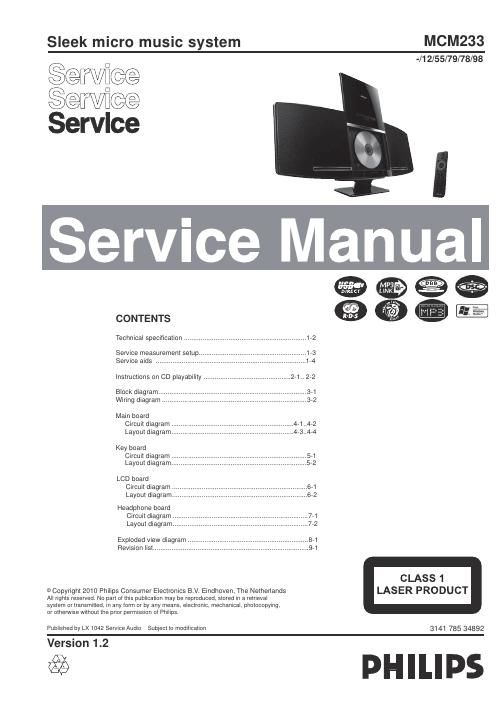

Philips mcm 233 service manual
This is the 21 pages manual for philips mcm 233 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips mcm 233 service manual (Ocr-read)
Page 1
Ampli? er Total output power 2 x 10 W R MS Frequency response 80 H z - 16 kH z, ± 3 dB Signal to noise ra o > 60 dB MP3 link inp ut 0.5 V R MS 20 k Disc L aser type Semiconductor Disc diameter 12 cm /8 cm Support disc C D -D A , C D -R , C D - RW , MP3-C D, W MA - CD A udio DA C 24 Bits / 44.1 kH z Total harmonic distor on < 1.5% Frequency response 60 Hz -16 kHz (44.1 kH z) Signal to noise ra o > 55 dBA Tuner Tuning range FM: 87.5 - 108 MH z Tuning grid 50 KH z Numbe r of presets 20 Speakers Speaker impedance 2 x 10 W , 6 General informa on A C power 100-240V~ , 50/60H Z Opera on Power Co nsump on 15 W Standby Power Co nsump on 1 W Eco Power Standby Power Co nsump on 0.8 W USB D irect Version 2.0/1.1 Dimensions - Main U nit ( W x H x D ) 565 x 245 x 10 4 m m Weight -MainUnit 2.7kg TECHNICAL SPECIFICATION 1 - 2 Type /Versions: Features Board in used: MCM233 Service policy KEY BOARD LCD BOARD * TIPS : C -- Component Lever Repair. M -- Module Lever Repair √-- UsedFeature diffrence RDS & DAB VOLTAGE SELECTOR ECO STANDBY - DARK Type /Versions: /12 VERSION VARIATION C √ POWER KEY BOARD MCM233 C C /12 /55 OPEN/CLOSE BOARD C /55 √ /79 REMOTE INCEPT BOARD RADIO BOARD MAIN BOARD USB BOARD C C C C C C CC CC C C /98 M/C CCC CC M/C C /79 /98 √ /78 C C CC CC M/C C /78 √
Page 2
1-3 LF Generator e.g. PM5110 Recorder Use Universal Test Cassette CrO2SBC419 4822 397 30069 LEVEL METERe.g. Sennheiser UPM550 with FF-filter S/N and distortion met e e.g. Sound Technology ST170 L R DUT or Universal Test Cassette FeSBC420 4822 397 30071 LEVEL METERe.g. Sennheiser UPM550 with FF -filter S/N and distortion metere.g. Sound Technology ST1700B L R DUT CD Use Audio Signal Disc (replaces test disc 3)SBC429 4822 397 30184 Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT S/N and distortion meter e.g. Sound Technology ST1700B Frame aeriale.g. 7122 707 89001 Tuner AM (MW,LW) To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday´s cage. Use a bandpass filter (or at least a high pass filter with 250Hz) to eliminate hum (50Hz, 100Hz). RF Generator e.g. PM5326 Ri=50 : Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT RF Generator e.g. PM5326 S/N and distortion meter e.g. Sound Technology ST1700B Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance from the pilottone (19kHz, 38kHz). Ri=50 : Tuner FM MEASUREMENT SETUP
