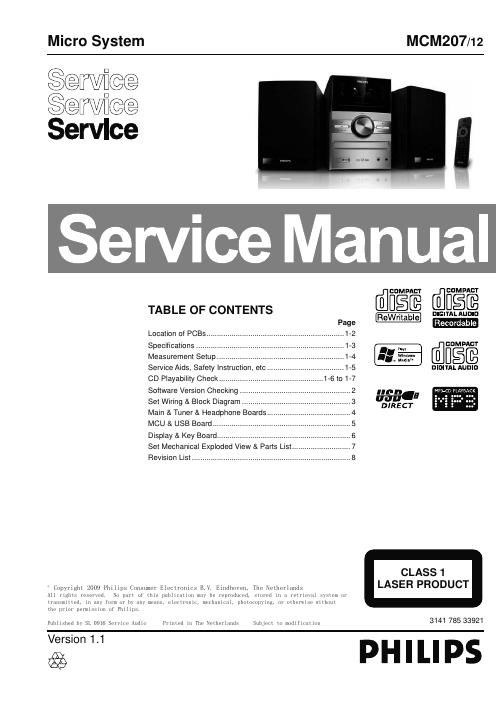

Philips mcm 207 ver 1 1 micro system
This is the 28 pages manual for philips mcm 207 ver 1 1 micro system.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips mcm 207 ver 1 1 micro system (Ocr-read)
Page 1
1-2 VERSION VARIATIONS Type /Versions: Board in used:MCM207 Service policy MAIN BOARD MCU BOARD (CD BOARD) USB JACK BOARD * TIPS : C -- Component Lever Repair. M -- Module Lever Repair -- UsedC /12 /05 /55 8 9 / 1 6 / 8 5 / DISPLAY & KEY BOARDC C TUNER BOARD M x HEADPHONE BOARD C /37 C/M DISPLAY & KEY BOARD HEADPHONE BOARDMCU BOARD (CD BOARD)TUNER BOARD USB BOARD MAIN BOARD CASS. BOARD CASS. BOARD M PCBS LOCATION
Page 2
Tape deck Frequency response Normal tape (type I) - 125 - 8000 Hz (8 dB) Signal-to-noise ratio Normal tape (type I) - 40 dBA Wow and flutter <0.4% JIS Speakers Speaker Impedance 4ohm General information-Specs Power supply Model: GFP181T- 1512-1 o r GFP181DA-1512-1, Input: AC10 0 -24 0V~, 50/60Hz, 0.35A Output: DC15V, 1. 2 A Operation Power Consumption26 W Standby Power Consumption<4 W Dimensions Main Unit ( W x H - x D) Speaker Box ( W x - H x D)152 x 228 x 222mm 146 x 232 x 140mm Weight With Packing - Main Unit - Speaker Box - 6.6 kg 1.95 kg 2 x 1.2 kg Supported MP3 disc formats ISO9660, Joliet - Maximum title number: 512 (depending - on file name length) Maximum album number: 255 - Suppor ted sampling frequencies: 32 kHz, - 44.1kHz, 48 kHz Suppor ted Bit-rates: 32~256 (kbps), - variable bit rates Amplifier Rated Output Power 2X5W RMS Frequency Response 60 - 16kHz, ±3dB Signal to Noise Ratio >62dB Disc Laser Type Semiconductor Disc Diameter 12cm/8cm Suppor t Disc CD-DA, CD-R , CD-RW, MP3-CD, WMA-CD Audio DAC 24Bits / 44.1kHz Total Harmonic Distor tion<1% Frequency Response 60Hz -16kHz S/N Ratio >62dBA Tuner Tuning Range FM: 87. 5 - 108MHz; MW: 531 - 1602kHz Tuning grid 50 kHz (FM); 9 kHz (MW) Total Harmonic Distor tion<3% Signal to Noise Ratio>50 dB 1-3 SPECIFICATIONS
