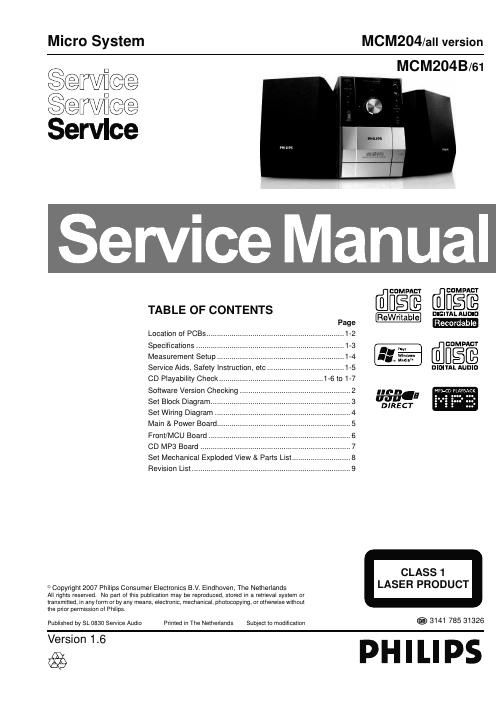

Philips mcm 204 service manual
This is the 32 pages manual for philips mcm 204 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips mcm 204 service manual (Ocr-read)
Page 1
CD MP3 BoardCD Drive Main Board Front / MCU Board Power Board LOCATION OF PCBs 1-2 VERSION VARIATIONS Type /Versions: Board in used: MCM204 & MCM204B Service policy MAIN BOARD CD MP3 BOARD POWER BOARD * TIPS : C -- Component Lever Repair. M -- Module Lever Repair-- Used C/M /05 /12 96 //61 FRONT/MCU BOARD C C x M /77 C/M C CM C/M C CM C/M C CM C/M C CM
Page 2
1-3 AMPLIFIER Output power ........................................... 2 x 4W RMS Signal-to-noise ratio .......................... t60 dBA (IEC) Frequency response ....................... 125 – 16000 Hz Impedance loudspeakers ........................................... 4 : CD PLAYER Frequency range ............................... 125 – 16000 Hz Signal-to-noise ratio ............................................ 65 dBA TUNER FM wave range ................................... 87.5 – 108 MHz MW wave range ................................ 531 – 1602 kHz Sensitivity at 75 : – FM 26 dB sensitivity .......................................... 20 µV – MW 26 dB sensitivity ................................... 5 mV/m Total harmonic distor tion ..................................... d 5% TAPE DECK Frequency response Normal tape (type I) ...... 125 – 8000 Hz (8 dB) Signal-to-noise ratio Normal tape (type I) .................................... 40 dBA Wow and flutter .............................................. d 0.4% JIS SPEAKERS Bass reflex system Dimensions (w x h x d) . 146 x 228 x 160 (mm) GENERAL INFORMATION AC Power ..................................... 220 – 230 V / 50 Hz Dimensions (w x h x d) ... 146 x 228 x 216(mm) Weight (with/without speaker s) .................................. ............................................................... approx. 4.4 / 2.0 kg Power consumption Active ........................................................................\ .. 30 W Standby .................................................................... < 5 W Eco Power Standby ........................................... < 1 W Specifications and external appearance are subject to change without notice. SPECIFICATIONS
