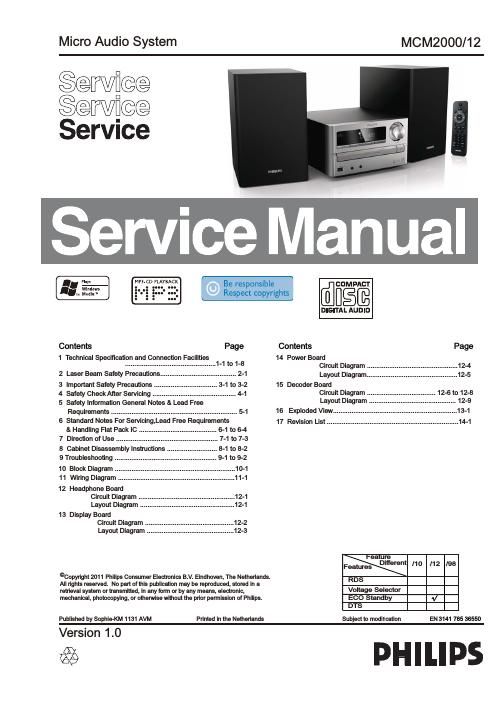

Philips mcm 2000 service manual

Page 2

2. General Information and Requirement 2.1 Product Family Features 2.1.1 Identity and Key Features MCM2000 series are Micro Audio System with CD/MP3 player with USB and Tuner FM(20presets). Elements to include as generic requirements: 1. Detachable mains cord 2. Safety certification (cUL/FCC and CB/EMC/CE) Following is a list of key features: 1. CD /MP3 disc player (Ali-M5673) 2. USB true source a) MSC/MTP device b) USB 2.0HS 3. MP3 Link (via headphones jack from PC or MP3 player) 4. Headphone Out (in front of the set) 5. Tuner FM(Silicon Lab SI4705/w RDS) 6. Digital Amplifier (ST class D,TDA7491HV) 7. Rated output power @10%THD table 2 Set Type Number Stroke Versions Power Remark MCM2000 All version 2x10W 2.1.2 Styling, Forms and Functions MCM2000 appearances are defined in their respective MUS. MUS is the leading document where product appearance is applicable.. Features Products MCM2000 Stroke versions Design All Refer to MUS[3] for details Front UP Tray Middle Tray LocationOptical Drive Loading 1.2kg 1.05kg speakerMain setLCD Tray OrientationHORIZONTAL Dimension 3mm t e e f f o t h g i e H Apparatus tray closed W x D x H (mm) 200X119X210mm Weight Technical Specification and Connection Facilities 1-2
