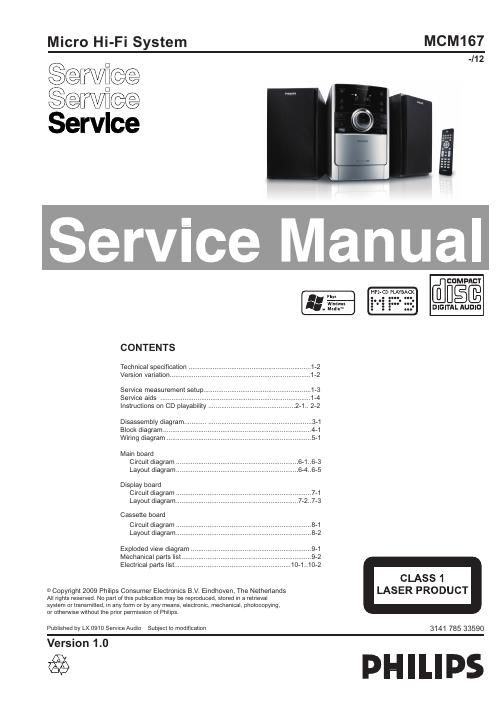

Philips mcm 167 service manual

Page 1

Amplifier Rated Output Power 2X5W RMS Frequency Response 60-16kHz, ±3dB Signal toNoise Ratio >65dB Aux Input 0.5VRMS 20kohm Disc Laser Type Semiconductor Disc Diameter 12cm/8cm Suppo rtDisc CD- DA,CD-R, CD- RW, MP3-C D,WMA-CD Audio DAC 24Bits /44.1kHz Total Harmonic Disto rtion <1% Frequency Response 60Hz -16kHz (44.1kHz) S/N Ratio >65d BA Tuner Tuning Range FM: 87.5 -108MHz; MW: 531 -1602kHz Tuning grid 50KHz Sensitivity-Mon o,26dB S/N Ratio -Stere o,46dB S/N Ratio <22 dBf >43 dBf Search Selectivity >28dBf Total Harmonic Disto rtion <3% Signal toNoise Ratio >55dB Tape deck Frequency response-Normal tape (type I) 125 -8000 Hz(8dB) Signal-to-noise ratio -Normal tape (type I) 40dBA Wow and ?utter <0.4% JIS Spea kers Spea kerImpedance 4ohm Spea kerDriver 3.5 woofer+0.8 tweeter Sensitivity >82dB/m/W General in formation-Specs ACpower 220 -230 V,50Hz Ope ration PowerConsumption 20W Stand byPowerConsumption <4W Eco Stand byPowerConsumption <2W Dimensions-Main Unit (W xHxD) -Spea kerBox(W xHxD) 209 x231 x147mm 146 x228 x160mm Weight-With Packing -Main Unit -Spea kerBox 6.6 kg 1.95 kg 2x1.2 kg TECHNICAL SPECIFICATION 1 - 2 Type /Versions : Feature s Board inused : MCM167 Service policy DISPL AY BOARD *TIPS : C -- Component Lever Repai r. M -- Module Lever Repair√-- Used /05 /12 /55 89/ 16/ 85/ Feature di ffrence RDS & DAB VO LTAGE SELEC TOR ECO S TANDB Y - DARK √ Type /Versions : /05 /12 /55 89/ 16/ 85/ VERSION VARIATION 39/ 39/ C MAIN BOARD CASSETTE BOARD C MCM167 C
