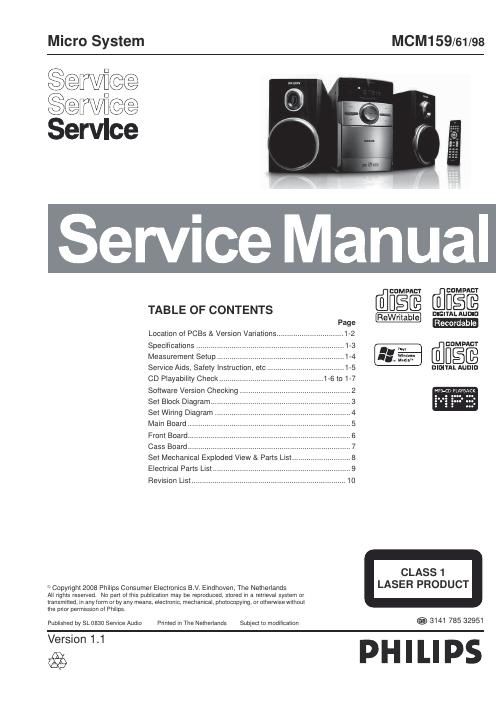

Philips mcm 159 service manual
This is the 28 pages manual for philips mcm 159 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips mcm 159 service manual (Ocr-read)
Page 1
PCBS LOCATION FRONT BOARDMAIN BOARD CASS BOARD 1-2 /12 /61 n i R D C / n i x u A Line Out Video Out Headphone Out Digital Out Karaoke Features Voltage Selector ECO Power Standby (LCD Display Off) USB Direct Type /Versions: Features in used: /05 VERSION VARIATIONS Type /Versions: Board in used: MCM159 Service policy MAIN BOARD CASS BOARD FRONT BOARD * TIPS : C -- Component Lever Repair. M -- Module Lever Repair-- Used C /12 /05 8 59 5/ /1 6 / 8 5 / Feature diffrence C x C x MCM159 x
Page 2
1-3 AMPLIFIER Output power ........................................... 2 x 2W RMS Signal-to-noise ratio .......................... t 60 dBA (IEC) Frequency response ....................... 125 – 16000 Hz Impedance loudspeakers ........................................... 8 : CD PLAYER Frequency range ............................... 125 – 16000 Hz Signal-to-noise ratio ............................................ 65 dBA TUNER FM wave range ................................... 87.5 – 108 MHz MW wave range ................................ 531 – 1602 kHz Sensitivity – FM 26 dB sensitivity .......................................... 20 µV – MW 26 dB sensitivity ................................... 5 mV/m Total harmonic distor tion ..................................... d 5% TAPE DECK Frequency response Normal tape (type I) ...... 125 – 8000 Hz (8 dB) Signal-to-noise ratio Normal tape (type I) .................................... 40 dBA Wow and flutter .............................................. d 0.4% JISSPEAKERS Bass reflex system Dimensions (w x h x d) . 134 x 230 x 152 (mm) GENERAL INFORMATION AC Power ............................ 110 – 127 / 220 – 240 V ....................................................... 50/60 Hz, switchable Dimensions (w x h x d) .. 148 x 233 x 216 (mm) Weight (with/without speaker s) .................................. ......................................................... approx. 3.65 / 1.53 kg Power consumption Active .......................................................................... 15 W Standby .................................................................... < 4 W Specifications and external appearance are subject to change without notice. SPECIFICATIONS
