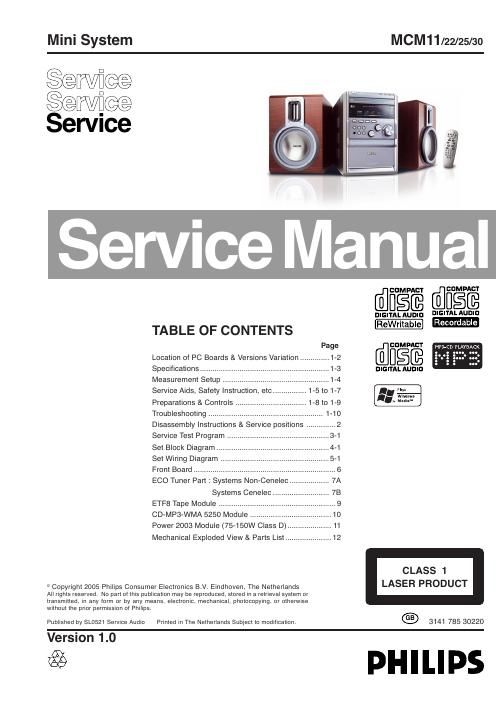

Philips mcm 11 service manual
This is the 79 pages manual for philips mcm 11 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips mcm 11 service manual (Ocr-read)
Page 1
1-2 LOCATION OF PC BOARDS /22 /25 Aux in / CDR in x x Line Out V ideo Out Surround Out Subwoofer Out Digital Out Digital in Matrix Surround RDS/NEWS x x Dolby Pro Logic (DPL) Incredible Surround x x Karaoke Features V oltage Selector ECO Power Standby (Clock Display Off) x x ECO6 Tuner Board - Systems Non-Cenelec ECO6 Tuner Board - Systems Cenelec x x VERSION VARIATIONS: T ype /Versions: MCM11 Features & Board in used: Mains Board Display Board T uner Board ETF8 SD Board Eeprom Board Regulator Board (Below Tuner Board) /30 x x x x
Page 2
1-3 SPECIFICA TIONS GENERAL: Mains voltage : 220-230V for /22/25 Power consumption : 60W at 1/8 P rated < 15W at Standby (Demo mode off) < 0.5W at ECO Standby Clock accuracy : < 4 seconds per day Dimension centre unit : 175 x 252 x 350mm TUNER: FM T uning range : 87.5-108MHz Grid : 50kHz IF frequency : 10.7MHz ± 25kHz Aerial input : 75 Ω coaxial Sensitivity at 26dB S/N : < 7 µV Selectivity at 600kHz bandwidth : > 25dB Image rejection : > 25dB [> 75dB] Distortion at RF=1mV, dev. 75kHz : < 3% -3dB Limiting point : < 8 µV Crosstalk at RF=1mV, dev. 40kHz : > 18dB MW T uning range : 531-1602kHz Grid : 9kHz IF frequency : 450kHz ± 1kHz Aerial input : Frame aerial Sensitivity at 26dB S/N : < 4.4mV/M Selectivity at 18kHz bandwidth : > 18dB IF rejection : > 45dB Image rejection : > 28dB Distortion at RF=50mV, M=80% : < 5% AMPLIFIER: Output power (6 Ω, 1kHz, 10% THD) L & R : 2 x 75W RMS Frequency response within -3dB : 50Hz-16kHz Bass : 60Hz ± 3 Steps T reble : 12kHz ± 3 Steps Incredible Surround : On / Off Input sensitivity Aux in (at 1kHz) : 500mV at 600 Ω CDR in (at 1kHz) : 1000mV at 600 ΩOutput sensitivity Headphone output at 32 ohm : 15mW ± 2dB (Max. vol.) CD Headphone output at 32 ohm : 5mW ± 2dB (Max. vol.) CASSETTE RECORDER: Number of track : 2 tracks (stereo) T ape speed : 4.76 cm/sec ± 2% W ow and flutter : < 0.4% DIN Fast-wind/Rewind time C60 : 130 sec Bias system : 78kHz ± 10kHz Rec/Pb frequency response within 8dB : 80Hz - 10kHz Signal to Noise Ratio (Type I) : > 48dBA Signal to Noise Ratio (Type II) : > 52dBA COMPACT DISC: Measurement done directly at the connector on the board. Output Resistance : < 100 Ω Output Voltage (0dB, 1kHz) : 0.5Vrms ± 1dB (unloaded) Channel Unbalance : < ±1dB Channel Separation (1kHz) : > 60dB Frequency Response ( 3dB) : 20Hz-20kHz Signal to Noise Ratio : > 76dBA MP3-CD Bit Rate : 32-256 kbps Sampling Frequencies : 32, 44.1, 48 kHz [....] Values indicated are for "ECO6 Cenelec Board" only. : 220-240V for /30 Mains frequency : 50/60Hz
