Extracted text from philips mci 8080 service manual (Ocr-read)

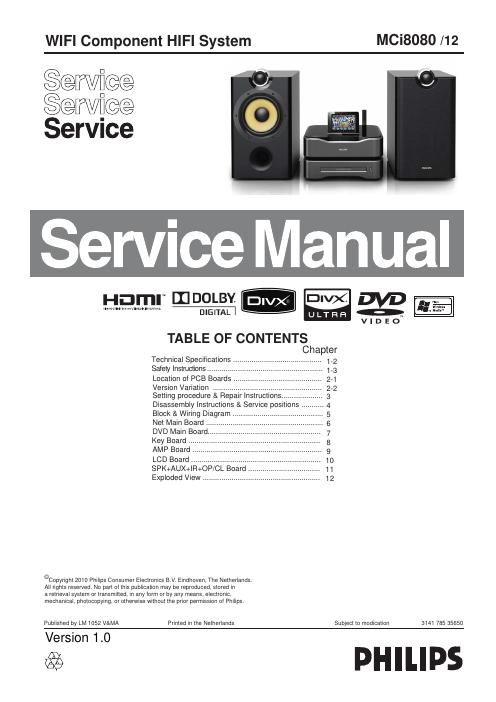

Page 1
Audio outputs Headphones 1 x 3.5mm jack, 20 – 18000Hz, 16 - 150Ω (Ohms) Signal to noise ratio (Headphones) typically ≥ 85dBA (IEC) Distortion (Headphones) ≤ 1% Audio / Video outputs (only provide output during disc playback) CVBS 1 x Cinch, 1Vpp, 75 Ohm HDMI 480i, 480p, 576i, 576p, 1080i, 1080p Video system PA L / N T SC Video format 4:3 / 16:9 Audio ampli?er (Digital) Output power 2 x 50W (RMS) (= total power 100W ) Frequency response 20Hz to 20000Hz (±0.5dB) Signal to noise ratio typically 92dB/ ≥ 93dBA Speakers Power handling 50W (RMS) Impedance 8Ω (Ohms) Sensitivity 83dB/ 1m / W Dimensions Woofer : 5. 2 5 inches Tweeter: 1.00 inches Frequency response 75 to 20000Hz 1.Technical Specifications General AC Power (Main unit) 230V ±10% , 50Hz (for /12, /05 /79) 120V ±10% , 60Hz (for /37) DC Power (DVD unit) DIN connector (Output provided by Main unit) DC Power (HDD unit) 5V USB power, 900mA (Provided by Main unit)¹ Dimensions Main unit: 251 x 251 x 142mm (including LCD) DVD unit: 251 x 251 x 74mm HDD unit: 122 x 75 x 13mm Speaker box: 180 x 282.9 x 295mm Weight (ne t) 12.50kg (all items) Note ¹Use HDD only with the by-packed USB wire. - Power consumption Active (On) ≤ 45W (Active) Standby ≤ 12W (HDD-spun down) ECO (Passive) Standby ≤ 0.9W Audio inputs Aux in (Line in) 2x Cinch Input sensitivity 0.8V Input impedance > 10kΩ (Ohms) English 1-2-A
