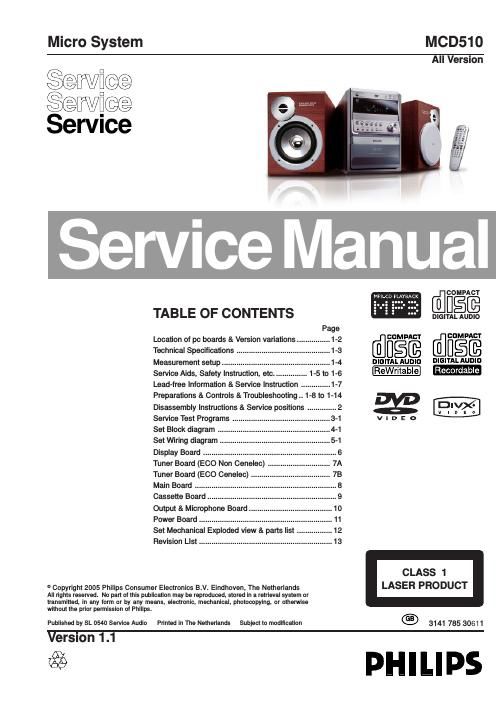

Philips mcd 510 service manual
This is the 54 pages manual for philips mcd 510 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips mcd 510 service manual (Ocr-read)
Page 1
1-2 LOCATION OF PCBS Aux in / CDR inx Line Out Vi deo Out Surround Out Subwoofer Out Power Booster Out Digital Out Digital in Matrix Surround RDS x News x Dolby Pro Logic (DPL) Incredible Surround Karaoke Features Vo ltage Selector ECO Power Standby (LCD Display Off) x ECO6 Tuner Board - Systems Non-Cenelec ECO6 Tuner Board - Systems Cenelec VERSION VARIATIONS: T ype /Versions: MCD510 \ Features & Board in used: /22 x x x x x x x /21M x x x x xx /14 /21 x x x x x x x x x x x x x x x
Page 2
1-3 SPECIFICATIONS GENERAL: Mains voltage :230V ± 10% for /22/14 Mains frequency : 50/60Hz Clock accuracy : < 4 seconds per day Dimension centre unit : 180(W) x 265(H) x 325(D) (mm) Power consumption Active : 60W Standby : < 15W (DEMO mode off) ECO Power Standby : < 1W TUNER: FM T uning range : 87.5-108MHz Grid : 50kHz IF frequency : 10.7MHz ± 20kHz Aerial input : 75 Ω coaxial Sensitivity at 26dB S/N : < 22dBf Selectivity at 300kHz bandwidth : > 33dB Image rejection : > 20dB Distortion at RF=1mV, dev. 75kHz : < 3% -3dB Limiting point : < 23.5dB Crosstalk at RF=1mV, dev. 40kHz : > 26dB AM T uning range : 531-1602kHz Grid : 9kHz IF frequency : 450kHz ± 1kHz Aerial input : Frame aerial 18.1 µH Sensitivity at 26dB S/N : > 1.3mV/M Selectivity at 300kHz bandwidth : > 20dB IF rejection : > 24dB Image rejection : > 28dB Distortion at RF=50mV, M=80% : < 5% AMPLIFIER: Output power L & R : 2 x 25W (6 Ω, 1kHz, 10% THD) Frequency response within +0.5/-1.0dB :20Hz-20kHz Digital Sound Control (DSC) : Jazz / Rock / Pop / Optimal Dynamic Bass Boost (DBB) : On / Off Input sensitivity Aux in (at 1kHz) : 500mV at 600 Ω Output sensitivity Headphone output at 32 k Ω:12mW ± 1dB (Max. vol.) COMPACT DISC: Frequency response within ± 3dB : 20Hz - 20kHz Output level (in Vrms) : 500mV, Z out = 100 Ω Signal/Noise ratio (A-weighted) : > 65dBA Distortion at 1kHz : < 0.02% Channel unbalance at 1kHz : < ±2dB Channel separation at 1kHz : > 30dB Emphasis : 15/50 µS (switched automatically by CD10) THD Noise(1kHz) : < 0.5% Outband Attenuation : 35dB MP3-CD Bit Rate : 32-320 kbps Sampling Rate : 32, 44.1, 48 kHz Forma : ISO9660, Joliet 110-127V/220-240V Switchable for /21M/21 CASSETTE RECORDER: Number of track : 2 stereo Tape speed : 4.76 cm/sec ± 2% W ow and flutter : < 0.4% DIN Fast-wind/Rewind time C60 : 130 sec Bias system : 75kHz ± 10kHz Rec/Pb frequency response within 8dB : 100Hz - 10kHz Signal to Noise Ratio (Type I) : > 38dB 100kHz for /21 530-1700kHz for /21/21M 10kHz for /21/21M Incredible Surround : On / Off Microphone in (at 1kHz) : 1mV rms at 600 Ω /21 /21M Line output at 10 k Ω:2Vrms Subwoofer output at 10 k Ω:3Vrms (100Hz,Dist: 1%) Digital output (Coaxial SPDIF) : 0.5Vpp at 75 Ω Video Bandwidth : 6MHz(-5dB) S/N luminance : > 48dB S/N chroma : AM: >58dB/PM: >51dB Chrome/Luminance delay : < 80ns Burst/Chroma ratio : ± 5% VIDEO PART
