Extracted text from philips mcd 370 service manual (Ocr-read)

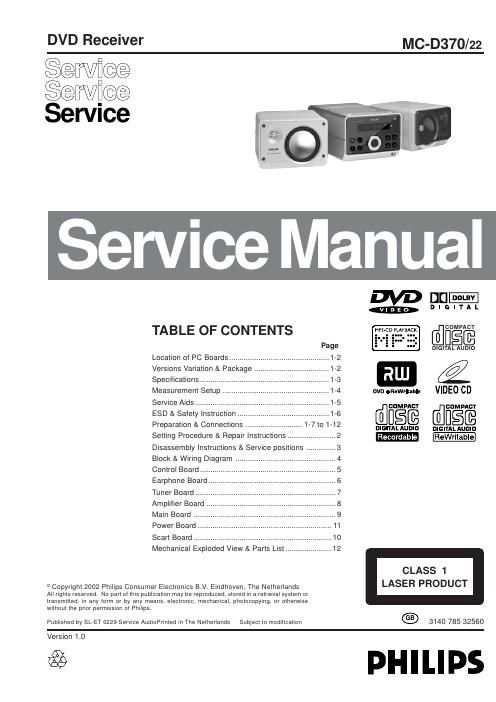

Page 1
1-2 LOCATION OF PC BOARDS
Page 2
1-3 SPECIFICATIONS AMPLIFIER SECTION Output power - Stereo mode (DIN) ................................................ 2 x 23 W Total Harmonic Distortion ..............10% at rated power ( kHz) Frequency Response ........................180 Hz - 14 kHz / ±1 dB Signal-to-Noise Ratio ..................................... > 65dB (CCIR) Input Sensitivity ......................................................... 400 mV TUNER SECTION Tuning Range ..........................................FM 87.5 – 108 MHz ................................. AM (MW) 531 – 1602 kHz (9 kHz steps) 26 dB Quieting Sensitivity ....................................... FM 20 dB 26 dB Quieting Sensitivity ..................... AM (MW) 5000 mV/m Image Rejection Radio .............................................. FM 25dB ...................................................................... AM (MW ) 28 dB IF Rejection Ratio .................................................... FM 60 dB ....................................................................... AM (MW) 24 dB Signal-to-Noise Ratio ............................................... FM 55 dB ....................................................................... AM (MW) 35 dB AM Suppression Ratio ............................................. FM 30 dB Harmonic Distortion ........................................... FM Mono 3 % ......................................................................... FM Stereo 3 % .......................................................................... AM (MW) 5 % Frequency Response ................... FM180 Hz – 10 kHz / ±6 dB Stereo Separation ........................................ FM 26 dB (1 kHz) Stereo Threshold ................................................... FM 23.5 dB DVD SECTION Laser Type ....................................................... Semiconductor Disc Diameter ........................................................ 12cm / 8cm Video Decoding .......................................................... MPEG-2 Video DAC .................................................................... 10 Bits Signal System ....................................................... PAL / NTSC Video Format ............................................................. 4:3 / 16:9 Video S/N ..................................................... 56 dB (minimum) Composite Video Output .................................. 1.0 Vp-p, 75 W S-Video Output ........................................... Y - 1.0 Vp-p, 75 W ............................................................... C - 0.286 Vp-p, 75 W Audio DAC ..................................... Direct Digital Amplification Frequency Response ....................... 4 Hz – 20 kHz (44.1 kHz) ............................................................ 4 Hz – 22 kHz (48 kHz) ............................................................ 4 Hz – 44 kHz (96 kHz) Digital Output ................................................... SPDIF Coaxial MISCELLANEOUS Power Supply Rating .................................. 220-240V ~ 50 Hz Power Consumption ......................................................... 80W Dimensions (w x h x d) .............. 180 mm x 132 mm x 283 mm Weight ............................................................................ 3.7 kg SPEAKERS Front Speakers System ............................................................. 2-way shielded Impedance ........................................................................ 8 W Speaker drivers .................................... 2 x 2 woofer, 1.75 tw Dimensions (w x h x d) .............. 180 mm x 132 mm x 283 mm Weight .......................................................................... 1.75 kg Specifications subject to change without prior notice
