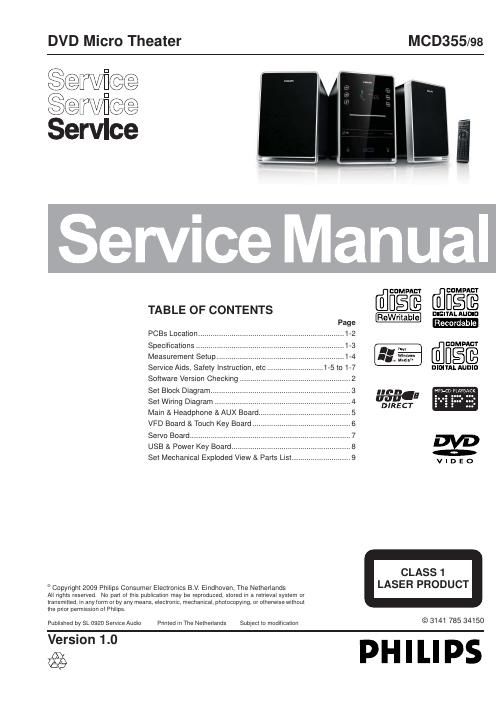

Philips mcd 355 service manual

Page 2

1-3 Disc Laser Type Semiconductor Disc Diameter 12cm/8cm Video Decoding MPEG-1 / MPEG-2 / DivX Video DAC 12Bits Signal System PA L / N T SC Video Format 4:3 / 16:9 Video S/N > 48dB Audio DAC 24Bits / 96kHz Total Harmonic Distor tion<1% (1 kHz) Frequency Response4Hz - 20kHz (44.1kHz) 4Hz - 22kHz (48kHz) 4Hz - 24kHz (96kHz) S/N Ratio > 65dBA General information AC power 110 - 127V/220 - 240V, 50/60Hz Dimensions - Main Unit ( W x H x D) - Speaker Box ( W x H x D)173 x 257 x 240mm 173 x 257 x 240mm Weight - With Packing - Main Unit - Speaker Box10.8 kg 2.3 kg 2 x 2.8 kg Amplifi er Rated Output Power 4X50W RMS Frequency Response 63 - 14000 Hz, ±3dB Signal to Noise Ratio > 62dB Tuner (FM) Tuning Range 87. 5 - 108 MHz Tuning grid 50 KHz Sensitivity - Mono, 26dB S/N Ratio<22 dBu Search Selectivity <28 dBu Total Harmonic Distor tion <3% Signal to Noise Ratio > 45 dB Speakers Speaker Impedance 6ohm USB playability information Compatible USB devices: USB fl ash memor y (USB 2.0 or USB1.1) - USB fl ash players (USB 2.0 or USB1.1) - memor y cards (requires an additional - card reader to work with this apparatus) Supported formats: USB or memor y fi le format FAT12, - FAT16, FAT32 (sector size: 512 by tes) MP3 bit rate (data rate): 32-320 Kbps and - variable bit rate WMA v9 or earlier - Director y nesting up to a maximum of 8 - levels Number of albums/ folders: maximum 99 - Number of tracks/titles: maximum 999 - ID3 tag v2.0 or later - File name in Unicode UTF8 (maximum - leng th: 128 by tes) Unsupported formats: Empty albums: an empty album is an - album that does not contain MP3/ WMA fi les, and is not be shown in the display. Unsuppor ted fi le formats are skipped. For - example, Word documents (.doc) or MP3 fi les with ex tension .dlf are ignored and not played. A AC , WAV, PCM audio fi les - DRM protected WMA fi les (.wav, .m4a, - .m4p, .mp4, .aac) WMA fi les in Lossless format - Supported disc formats Digital Video Discs (DVDs) - Video CDs ( VCDs) - Super Video CDs (SVCDs) - Digital Video Discs + Rewritable - (DVD+RW) Compact Discs (CDs) - Picture (Kodak, JPEG) fi les on CDR(W) - DivX® disc on CD-R(W): - DivX 3.11, 4.x and 5.x, 6 - WMA - Supported MP3-CD formats: ISO 9660 - Max. title/album name: 12 characters - Max. title number plus album: 255. - Max. nested directory: 8 levels. - Max. album number: 32. - Max. MP3 track number: 999. - Suppor ted sampling frequencies for MP3 - disc: 32 kHz, 44.1 kHz, 48 kHz. Suppor ted Bit-rates of MP3 disc are: 32, - 64, 96, 128, 192, 256 (kbps). The following formats are not suppor ted: - Files like *.VMA , *. A AC , *.DLF, - *. M3U, *. PL S , *.WAV - Non-English Album/Title name - Discs recorded in Joliet format - MP3 Pro and MP3 with ID3 tag - SPECIFICATIONS
