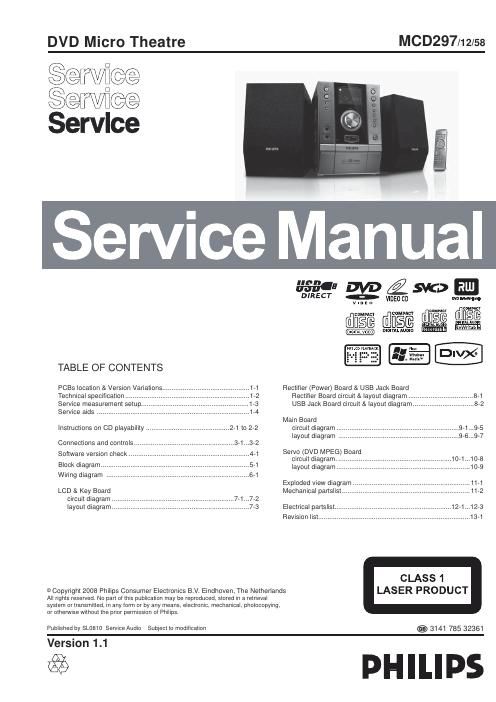

Philips mcd 297 service manual
This is the 38 pages manual for philips mcd 297 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips mcd 297 service manual (Ocr-read)
Page 1
RECTIFIER BOARD (POWER BOARD) LCD & KEY BOARD MAIN BOARD SERVO BOARD (DVD MPEG BOARD) 1 - 1 PCBS LOCATION 1-2 /12 /58 x x n i R D C / n i x u A Line Out Video Out Subwoofer Out Digital Out Karaoke Features Voltage Selector ECO Power Standby (LCD Display Off) USB Direct Type /Versions: MCD297 \ Features in used: /05 VERSION VARIATIONS Type /Versions: Board in used: MCD297 Service policy MAIN BOARD SERVO(MPEG) BOARD USB JACK BOARD RECTIFIER (POWER) BOARD * TIPS : C -- Component Lever Repair. M -- Module Lever Repair-- Used C M /05 /12 /55 8 9 / 1 6 / 8 5 / Feature diffrence C M LCD & KEY BOARD C C CC C C TUNER MODULE MM x x x x x x x x x x x x x
Page 2
SPECIFICATIONS AMPLIFIER Output power ....................................... 2 x 15 W RMS Signal-to-noise ratio .......................................≥ 60 dBA Frequency response ......... 63 – 16000 Hz, ± 3 dB Input sensitivity AUX ....................... 0.5 V (max. 2 V) Impedance loudspeaker s ......................................... 4 Ω Impedance headphones .................... 32 Ω -1000 Ω DVD PLAYER Laser Type ................................................ Semiconductor Disc Diameter .............................................. 12cm / 8cm Video Decoding ........................... MPEG-2 / MPEG-1 Video DAC ................................................................ 10 Bits Signal System ............................................... PAL / NTSC Video Format ..................................................... 4:3 / 16:9 Video S/N ........................................... 56 dB (minimum) Composite Video Output ................ 1.0 Vp-p, 75 Ω S-Video Output ............................. Y - 1.0 Vp-p, 75 Ω ........................................................... C - 0.286 Vp-p, 75 Ω Audio DAC .......................................... 24 Bits / 96 kHz Frequency Response .... 4 Hz - 20 kHz (44.1kHz) ...................................................... 4 Hz - 22 kHz (48kHz) ...................................................... 4 Hz - 44 kHz (96kHz) Digital Output ......................................................................... ....... SPDIF (Sony Philips digital interface) Coaxial Number of programmable tracks ......................... 16 Signal-to-noise ratio .......................................≥ 65 dBA Channel separation ..........................≥ 40 dB (1 kHz) Total harmonic distor tion ............... < 0.1% (1 kHz)TUNER FM wave range ................................... 87.5 – 108 MHz MW wave range ................................ 531 – 1602 kHz Sensitivity at 75 Ω – mono, 26 dB signal-to-noise ratio ............ 2.8 µV – stereo, 46 dB signal-to-noise ratio ........ 61.4 µV Selectivity .................................................................≥ 28 dB Total harmonic distor tion .....................................≤ 5% Frequency response ............ 63 – 5500 Hz (-6 dB) Signal-to-noise-ratio ......................................≥ 50 dBA USB PLAYER USB ......................................................................... V2.0/ V1.1 ...................................... suppor t MP3/WMA/JPEG files Number of albums/ folders ................ maximum 99 Number of tracks/titles ...................... maximum 500 TAPE DECK Frequency response Normal tape (type I) ...... 80 – 12500 Hz (8 dB) Signal-to-noise ratio Normal tape (type I) .................................... 50 dBA Wow and flutter .........................................≤ 0.4% DIN SPEAKERS 2-way bass reflex system GENERAL INFORMATION AC Power ..................................... 220 – 240 V / 50 Hz Standby power consumption ............................≤ 7W Eco power Standby ................................................ < 1W Dimensions Main Unit(w x h x d) ......... 152 x 228 x 237(mm) Speaker s (w x h x d) .......................................................... ...................................................... 140 x 228 x 212 (mm) Weight With Packing ............................................................... 7.7 kg Main Unit ................................................................... 3.34 kg Speaker box ............................................................. 2.85 kg Specifications and external appearance are subject to change without notice. 1 - 2
