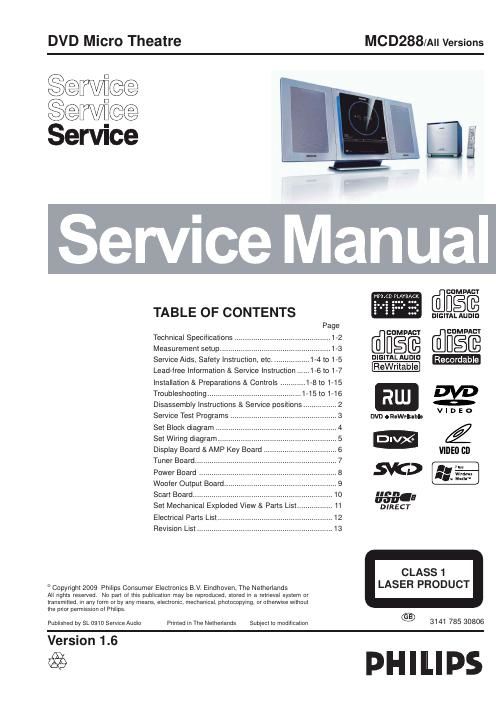

Philips mcd 288 service manual
This is the 39 pages manual for philips mcd 288 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips mcd 288 service manual (Ocr-read)
Page 1
1-2 /37 /55 /93 Aux in / CDR in x x x x Line Out Vi deo Out Surround Out Subwoofer Out Power Booster Out S-Video Out Scart Out Matrix Surround RDS x News x Dolby Pro Logic (DPL) Incredible Surround Karaoke Features Vo ltage Selector x ECO Power Standby (VFD Display Off) x x ECO6 Tuner Board - Systems Non-Cenelec ECO6 Tuner Board - Systems Cenelec USB Direct VERSION VARIATIONS: T ype /Versions: MCD288 \ Features & Board in used: x /12 /98 x x x x xx xx x x x LOCATION OF PCBS
Page 2
SPECIFICATION GENERAL: Mains voltage :230V ± 10% /12 , 220V ± 10% /93 120V ± 10% / 230V ± 10% /55/96/98 Mains frequency : 50/60Hz /55/96/98 Power consumption : < 1W at ECO Standby /12/37 < 4W Standby w/Clock on < 35W Active Clock accuracy : < 2 seconds per day Dimension w/o Boxes : 472(W) x 360(H) x 224(D)mm TUNER: FM T uning range : 87.5-108MHz Grid : 50kHz/100kHz IF frequency : 10.7MHz ± 20kHz Aerial input : Sensitivity at 26dB S/N : < 22dBf Selectivity at 300kHz bandwidth : > 33dB IF rejection : > 60dB Image rejection : > 25dB Distortion at RF=1mV, dev. 75kHz : < 3% -3dB Limiting point : < 23.5dBf Adjacent Channel Selectivity : > 33dB AMPLIFIER: Frequency response within ±3dB : 100Hz-15kHz S-Bass & Loudness : ON/OFF Digital Sound Control : Classic, Jazz, Rock, Pop or Flat Headphone output at 32K Ω:700mV ± 2dB Input sensitivity DVD : -6dB track (Audio Disc1,Trk35) COMPACT DISC: Measurement done at output conn. of the DVD module. Frequency response within ± 1.0dB : 20Hz - 20kHz Signal/Noise ratio (A-weighted) : > 70dBA Channel Unbalance : < ±2dB (Vol 0 _-50dB) Channel Separation (1K) : 40dB THD Noise (20-20,000Hz) at 1kHz : 0.5% De-emphasis : 0 or 15/50 µS (Switched automatically by CD10) MPEG 1 Layer 3 (MP3-CD) : MPEG AUDIO MP3-CD Bit Rate : 8-320 kbps MP3-CD Sampling Frequencies : 8k/11.025k/16k/22.05k /32k/44.1k/48k Hz Recording Format : ISO 9660 UDF format not supported USB: Measurement done at speaker terminals across 6 Ω load w/ 500mW output and DSC setting in Jazz Mode. Frequency response within ± 3dB : 100Hz - 16kHz Signal/Noise ratio (A-weighted) : > 60dBA Channel crosstalk at 1kHz : > 35dB Channel unbalance at 1kHz : ±3dB Output power :2 x 20W :2 x 50W Pigtail Antenna Wire : 50Hz /12/93 : 60Hz /37 120V ± 10% /37 Subwoofer Out (8 Ω, 10% THD) Mains Operation (Nominal, 6 Ω, 10% THD) Woofer within −6dB : 50Hz-180Hz Normal, Concert, Drama, Action or SCI-FI For DVD : Channel Separation -400/1K/5K : 20/26/18dB S/N Ratio stereo input 80dB : > 55dB (16K) : 35dB (20K) : 30dB S/N Luminance : > 48dB Video Bandwidth : 6Mhz Chroma/Luminance Delay : < 80ns Burst/Chroma Ratio :1.0Vpp(+10/-10%) Amplitude Output : < 80ns 1-3
