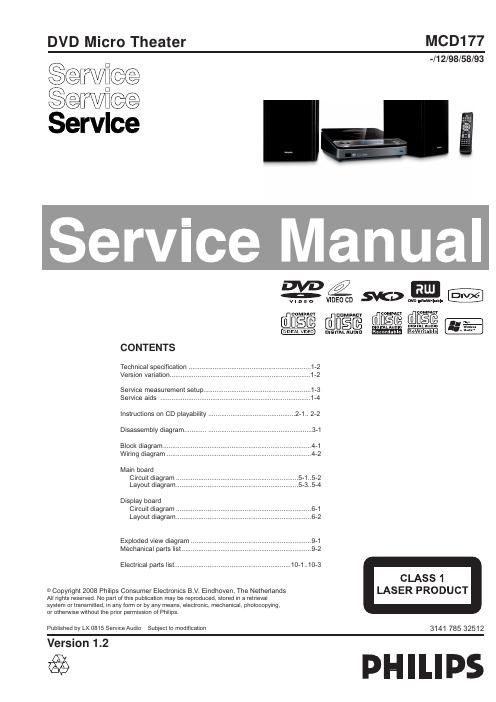

Philips mcd 177 service manual
This is the 21 pages manual for philips mcd 177 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips mcd 177 service manual (Ocr-read)
Page 1
AMPLIFIER Output powerL/R speaker s ............................. 20 W /channel RMS Speaker channel Frequency Response .................................................................................................. 200 Hz - 18 kHz / ± 3 dB Signal-to-Noise Ratio ...... > 60dB (A-weighted) Input Sensitivity AUX In .................................................................. 500 mV Output Sensitivity Line Out(1KHZ 0dB) ................................. 2 + 0.2V TUNER Tuning Range .............................. FM 87.5 – 108 MHz Signal-to-Noise Ratio ................................ FM ≥ 50 dB DV D Laser Type ................................................ Semiconductor Disc Diameter .............................................. 12cm / 8cm Video Decoding ........................... MPEG-2 / MPEG-1 Video DAC ................................................................ 12 Bits Signal System ............................................... PAL / NTSC Video Format ..................................................... 4:3 / 16:9 Video S/N ........................................... 56 dB (minimum) Composite Video Output ................ 1.0 Vp-p, 75 Ω S-Video Output .......................... Y - 700 Vp-p, 75 Ω .............................................................. C - 300 Vp-p, 75 Ω Audio DAC .......................................... 24 Bits / 96 kHz USB PLAYER USB ................................................................. 12 Mb/s, V1.1 ......................................... suppor t MP3 and WMA files Number of albums/folders ................. maximum 99 Number of tracks/titles ...................... maximum 800 Main unit Power Supply Rating ........... 100 -240V, 50/60 Hz Power Consumption Active ........................................................................\ .. 30 W Eco-power standby ............................................. <1 W Dimensions (w x h x d) .... 232 x 85 x 275 (mm) Weight ........................................................................\ ... 1.24kg Package Dimension (w x h x d) .................................. ...................................................... 554 x 405 x 225 (mm) Gross weight. .............................................................. 7.6 kg SPEAKERS System ................................................... 1-way, Bass reflex Impedance ........................................................................ 4 Ω Speaker drivers .............................................. 3 fullrange Frequency response ........................ 80 Hz – 20 kHz Dimension (w x h x d) .. 160 x 250 x 180 (mm) Weight ................................................................ 1.8 kg each Specifications and external appearance are subject to change without notice. TECHNICAL SPECIFICATION 1 - 2 Type /Versions: Features Board in used: MCD177 Service policy DISPLAY BOARD MAIN BOARD TUENR BOARD JACK BOARD * TIPS : C -- Component Lever Repair. M -- Module Lever Repair -- Used /05 /12 /55 8 9 / 1 6 / 8 5 / Feature diffrence RDS VOLTAGE SELECTOR ECO STANDBY - DARK C C Type /Versions: MCD177 /05 /12 /55 8 9 / 1 6 / 8 5 / M C VERSION VARIATION C CM C C CC C 3 9 / C CC C 3 9 /
Page 2
1-3 LF Generator e.g. PM5110 Recorder Use Universal Test Cassette CrO2SBC419 4822 397 30069 LEVEL METERe.g. Sennheiser UPM550 with FF-filter S/N and distortion met e e.g. Sound Technology ST170 L R DUT or Universal Test Cassette FeSBC420 4822 397 30071 LEVEL METERe.g. Sennheiser UPM550 with FF -filter S/N and distortion metere.g. Sound Technology ST1700B L R DUT CD Use Audio Signal Disc (replaces test disc 3) SBC429 4822 397 30184 Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT S/N and distortion meter e.g. Sound Technology ST1700B Frame aeriale.g. 7122 707 89001 Tuner AM (MW,LW) To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday´s cage. Use a bandpass filter (or at least a high pass filter with 250Hz) to e\ liminate hum (50Hz, 100Hz). RF Generator e.g. PM5326 Ri=50 : Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT RF Generator e.g. PM5326 S/N and distortion meter e.g. Sound Technology ST1700B Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance f\ rom the pilottone (19kHz, 38kHz). Ri=50 : Tuner FM MEASUREMENT SETUP
