Extracted text from philips mcb 395 service manual (Ocr-read)

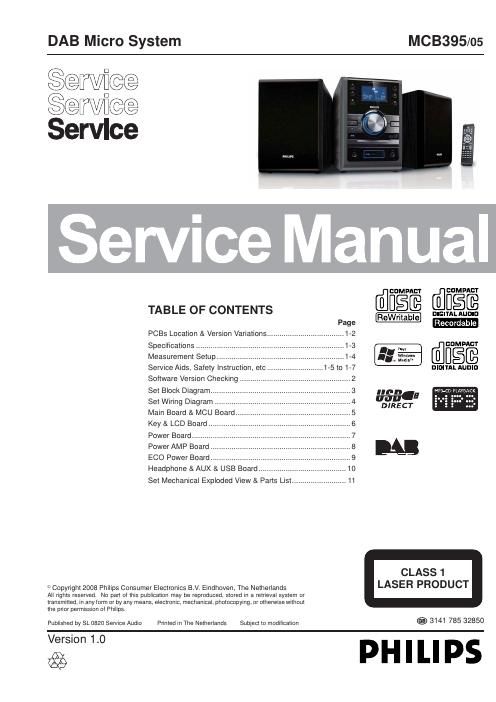

Page 1
KEY & LCD BOARDECO POWER BOARD MAIN BOARD POWER BOARD POWER AMP BOARD /12 /58 n i R D C / n i x u A Line Out Video Out Subwoofer Out Digital Out Karaoke Features Voltage Selector ECO Power Standby (LCD Display Off) USB Direct Type /Versions: MCB395 \ Features in used: /05 VERSION VARIATIONS Type /Versions: Board in used: MCB395 Service policy MAIN BOARD POWER BOARD POWER AMP BOARD ECO POWER BOARD * TIPS : C -- Component Lever Repair. M -- Module Lever Repair-- Used C /12 /05 8 5 5 /9 / 1 6 / 8 5 / Feature diffrence KEY & LCD BOARD C C C DAB MODULE M x x x 1 - 2 PCBS LOCATION USB & AUX & HP BOARD CC MCU BOARD MCU BOARD C
Page 2
1 - 3 AMPLIFIER Output power ....................................... 2 x 50 W RMS ...................................................... 100 W + 100 W MPO Signal-to-noise ratio .......................... t 62 dBA (IEC) Frequency response ......... 40 – 15000 Hz, ± 3 dB Impedance loudspeakers ......................................... 4 : Impedance headphones .................... 32 : -1000 : CD/MP3-CD PLAYER Number of programmable tracks ......................... 20 Frequency range .................................. 20 – 20000 Hz Signal-to-noise ratio ............................................ 75 dBA Channel separation ...................... t 50 dBA (1 kHz) Total harmonic distor tion .................................. d 0.5% MPEG 1 Layer 3 (MP3-CD) .......... MPEG AUDIO MP3-CD bit rate ....................................... 32-256 kbps (128 kbps advised) Sampling frequencies ....................... 32, 44.1, 48 kHz USB PLAYER USB ................................................................... 12Mb/s, V1.1 Number of albums/folders ................. maximum 99 Number of tracks/titles ...................... maximum 999 TUNER FM wave range ................................... 87.5 – 108 MHz Sensitivity at 75 : – mono, 26 dB signal-to-noise ratio ............ 2.8 µV – stereo, 46 dB signal-to-noise ratio ........ 61.4 µV Total harmonic distor tion ..................................... d 5% Frequency response ..... 63 – 12500 Hz (± 3 dB) Signal-to-noise-ratio ...................................... t 50 dBA DAB wave range .................................... 174-240 MHzSPEAKERS 2-way Bass reflex system GENERAL INFORMATION AC Power ..................................... 220 – 230 V / 50 Hz Standby Power Consumption ............................ d 7W ECO Standby Power Consumption .............. d 1W Dimensions (w x h x d) – Main unit (w x h x d) ...... 152 x 228 x 285 mm – Speaker box (w x h x d) 152 x 228 x 257 mm Weight – With Packing ........................................................ 8.92 kg – Main Unit ............................................................... 3.66 kg – Speaker box ......................................................... 4.13 kg Specifications and external appearance are subject to change without notice. SPECIFICATIONS
