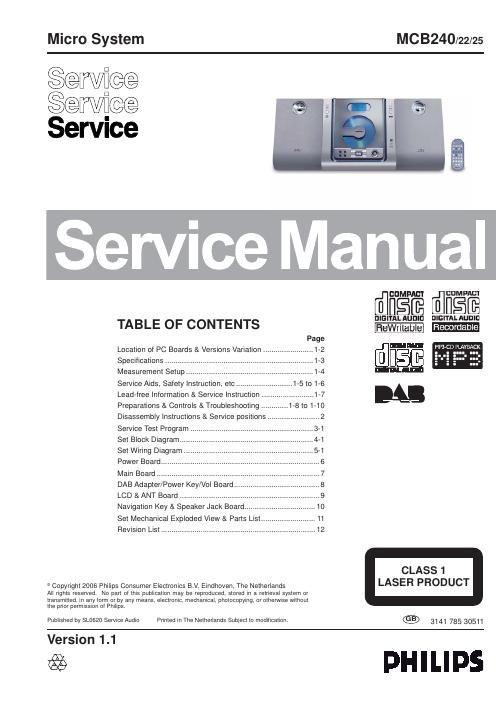

Philips mcb 240 service manual

This is the 39 pages manual for philips mcb 240 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 39
philips mcb 240 service manual

Extracted text from philips mcb 240 service manual (Ocr-read)

Page 1

1-2 LOCATION OF PCBS /25 Aux in / CDR in x x Line Out Vi deo Out Surround Out Subwoofer Out Power Booster Out Digital Out Digital in Matrix Surround RDS x x News x x Dolby Pro Logic (DPL) Incredible Surround Karaoke Features Vo ltage Selector ECO Power Standby (LCD Display Off) x x ECO6 Tuner Board - Systems Non-Cenelec ECO6 Tuner Board - Systems Cenelec DAB Dual Band VERSION VARIATIONS: T ype /Versions: MCB240 \ Features & Board in used: /22 DAB Single Band x x

Page 2

1-3 SPECIFICATIONS GENERAL: Mains voltage :230V ± 10% Mains frequency : 50Hz Clock accuracy : < 4 seconds per day Dimension centre unit : 250 x 245 x 96 (mm) Power consumption Active : 15W Standby : < 6W (DEMO mode off) ECO Power Standby : < 1W TUNER: FM T uning range : 87.5-108MHz Grid : 50kHz IF frequency : 10.7MHz ± 20kHz Aerial input : T type antenna Sensitivity at 26dB S/N : < 22dBf Selectivity at 300kHz bandwidth : > 15dB Image rejection : > 20dB Distortion at RF=1mV, dev. 75kHz : < 3% -3dB Limiting point : < 18dB Crosstalk at RF=1mV, dev. 40kHz : > 18dB AMPLIFIER: Output power L & R : 2 x 4.8W (4 Ω, 1kHz, 10% THD) Frequency response within -3dB : 60Hz-16kHz Digital Sound Control (DSC) : Jazz / Rock / Pop / Classic Dynamic Bass Boost (DBB) : ON / OFF COMPACT DISC: Frequency response within ± 3dB : 80Hz - 12kHz Output level (in Vrms) : 500mV, Z out = 100 Ω Signal/Noise ratio (A-weighted) : > 57dBA Crosstalk at 1kHz : > 26dB Channel difference at 1kHz : 2dB Emphasis : 15/50 µS (switched automatically by CD10) THD Noise(1kHz) : < 1.5% THD Noise(10kHz) : < 3% MP3-CD Bit Rate : 8-320 kbps WMA-CD Bit Rate Sampling Rate : 8, 11.025, 12, 16, 22.05\ , 24, 32, 44.1, 48, 96 kHz Format : 64-192 kbps : ISO9660, Joliet Input sensitivity Aux in (at 1kHz) : 500mV ± 2dB Output sensitivity Headphone output at 32 k Ω:15mW ± 2dB (Max. vol.)
