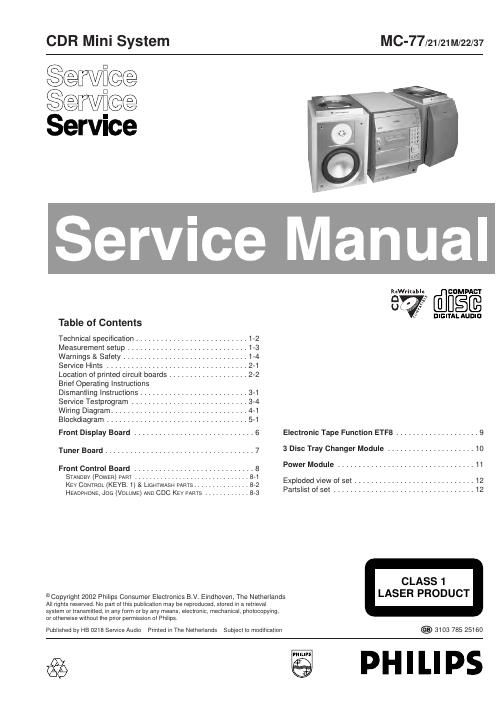

Philips mc 77 service manual
This is the 79 pages manual for philips mc 77 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips mc 77 service manual (Ocr-read)
Page 2
1-3 Measurement Setup Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT RF Generator e.g. PM5326 S/N and distortion meter e.g. Sound Technology ST1700B Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance f\ rom the pilottone (19kHz, 38kHz). Ri=50W Tuner FM Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT S/N and distortion meter e.g. Sound Technology ST1700B Frame aeriale.g. 7122 707 89001 Tuner AM (MW,LW) To avoid atmospheric interference all AM-measurements have to be carried\ out in a Faraday´s cage. RF Generator e.g. PM5326 Ri=50W L R LEVEL METERe.g. Sennheiser UPM550 with FF-filter S/N and distortion metere.g. Sound Technology ST1700B DUT CD Use Audio Signal Disc SBC429 4822 397 30184 (replaces test disc 3) L R LEVEL METERe.g. Sennheiser UPM550 with FF-filter S/N and distortion metere.g. Sound Technology ST1700B DUT RECORDER Use Universal Test Cassette CrO 2 SBC419 4822 397 30069 or Universal Test Cassette Fe SBC420 4822 397 30071 LF Generator e.g. PM5110
