Extracted text from philips mc 260 270 service manual (Ocr-read)

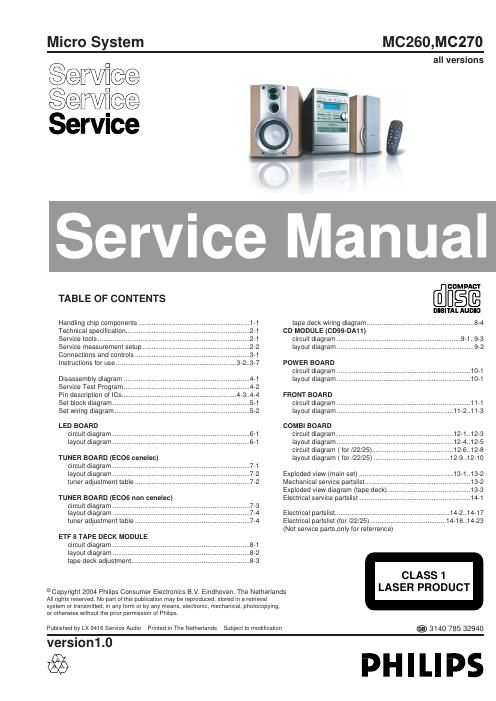

Page 1
1 - 1 © © © WARNING All ICs and many other semiconductors are susceptible to electrostatic discharges (ESD). Careless handling during repair can reduce life drastically. When repairing, make sure that you are connected with the same potential as the mass of the set via a wristband with resistance. Keep components and tools at this potential. ATTENTION Tous les IC et beaucoup d«autres semi-conducteurs sont sensibles aux d charges statiques (ESD). Leur long vite pourrait tre consid rablement court e par le fait qu«aucune pr caution n st prise leur manipulation. Lors de r parations, s«assurer de bien tre reli au m me potentiel que la masse de l«appareil et enfileer le bracelet serti d«une r sistance de s curit . Veiller ce que les composants ainsi que les outils que l«on utilise soient galement ce potentiel. d d WARNUNG Alle ICs und viele andere Halbleiter sind empfindlich gegen ber elektrostatischen Entladungen (ESD). Unsorgf ltige Behandlung im Reparaturfall kann die Lebensdauer drastisch reduzieren. Sorgen Sie daf r, da§ Sie im Reparaturfall ber ein Puls- armband mit Widerstand mit dem Massepotential des Ger tes verbunden sind. Halten Sie Bauteile und Hilfsmittel ebenfalls auf diesem Potential. ñ ñ WAARSCHUWING Alle IC«s en vele andere halfgeleiders zijn gevoelig voor electrostatische ontladingen (ESD). Onzorgvuldig behandelen tijdens reparatie kan de levensduur drastisch doen vermindern. Zorg ervoor dat u tijdens reparatie via een polsband met weerstand verbonden bent met hetzelfde potentiaal als de massa van het apparaat. Houd componenten en hulpmiddelen ook op ditzelfde potentiaal. AVVERTIMENTO Tutti IC e parecchi semi-conduttori sono sensibili alle scariche statiche (ESD). La loro longevit potrebbe essere fortemente ridatta in caso di non osservazione della pi grande cauzione alla loro manipolazione. Durante le riparationi occorre quindi essere collegato allo stesso potenziale che quello della massa del pparecchio tramite un braccialetto a resistenza. Assicurarsi che i componenti e anche gli utensili con quali si lavora siano anche a questo potenziale. Safety regulations require that the set be restored to its original condition and that parts which are identical with those specified be used. Safety components are marked by the symbol Le norme di sicurezza estigono che l«apparecchio venga rimesso nelle condizioni originali e che siano utilizzati i pezzi di ricambiago identici a quelli specificati. Componenty di sicurezza sono marcati con Veiligheidsbepalingen vereisen, dat het apparaat in zijn oorspronkeliijke toestand wordt teruggebracht en dat onderdelen, identiek aan de gespecificeerde, worden toegepast. De Veiligheidsonderdelen zijn aangeduid met het symbool s Varning ! Osynlig laserstr lning n r apparaten r ppnad och sp rren r urkopplad. Betrakta ej str len. Advarsel ! Usynlig laserstr ling ved bning n r sikkerhedsafbrydere er ude af funktion. Undg udsaettelse for str ling. Varoitus ! Avatussa laitteessa ja suojalukituksen ohitettaessa olet alttiina nkym tt m lle laseris teilylle. l katso s teeseen !"Pour votre s curite, ces documents doivent tre utilis s par des sp cialistes agr s, seuls habilit s r parer votre appareil en panne". ESD SAFETY Bei jeder Reparatur sind die geltenden Sicherheitsvor- schriften zu beachten. Der Originalzustand des Ger tes darf nicht ver ndert werden. F r Reparaturen sind Original- ersatzteile zu verwenden. Sicherheitsbauteile sind durch das Symbol markiert. Les normes de s curit exigent que lappareil soit remis l tat dorigine et que soient utilis es les pi ces de rechange identiques celles sp cifi es. Les composants de s curit sont marqu s CLASS 1 LASER PRODUCT DANGER: Invisible laser radiation when open. After servicing and before returning the set to customer perform a leakage current measurement test from all exposed metal parts to earth ground, to assure no shock hazard exists. The leakage current must not exceed 0.5mA. AVOID DIRECT EXPOSURE TO BEAM. f fi i ∂ ßf HANDLING CHIP COMPONENTS
Page 2
2 - 1 SERVICE TOOLS TORX T10 screwdriver with shaftlength 150mm.........................................4822 395 50423 TORX screwdriver set SBC 163...............................................................4822 295 50145 Audio signal disc SBC 429......................................................................4822 397 30184 Playability test disc SBC 444...................................................................4822 397 30245 Test disc 5(disc without errors ) + Test disc 5A(disc with dropout errors, black spots and fingerprints) SBC 426/426A.....................................................................4822 397 30096 Burn in test disc (65 min. 1kHz signal at -30 dB level without pause) .....4822 397 30155 Universal test cassette Fe SBC 420........................................................4822 397 30071 anti-static table matlarge 1200x650x1.25mm 4822 466 10953 small 600x650x1.25mm 4822 466 10958 anti-static wristband4822 395 10223 connection box (3 press stud connections, 1MΩ)4822 320 11307 4822 320 11305 extendible cable (2m, 2MΩ, to connect wristband to connection box) connecting cable (3m, 2MΩ, to connect table mat to connection box) 4822 320 11306 earth cable (1MΩ, to connect any product to mat or to connection box) 4822 320 11308 KIT ESD3 (combining all 6 prior products - small table mat) 4822 310 10671 wristband tester4822 344 13999 AVAILABLE ESD PROTECTION EQUIPMENT GENERAL Mains voltage -/21/21M : 120 / 230 V-/37 : 120 V -/22/30/33 : 230 V-/25 : 240 V Mains frequency /25/-/22/ 30/33 : 50 Hz -/21/21M : 50 / 60 Hz -/37 : 60 Hz Batteryremote : 3 V (R6 x 2) Power consumptionnormal : 60 W Standby : 3 W Dimension (W x H x D) : 140 x 231 x 280 mm Weight : 6.7 Kg AMPLIFIER Output power mains : 2 x 8 W Speaker impedance : 2 x 8 ohm Frequency response : 100 Hz - 10 kHz (±4dB) TUNER - FM SECTION Tuning range :87.5 - 108 MHz IF frequency : 10.7 MHz ± 0.02 MHz Sensitivity : 16 dBf at 26dB S/N Selectivity 300kHz : 55 dB IF suppression : 85 dB Image suppression : 40 dB Channel separation 1kHz : 28 dB TUNER - AM SECTION Tuning range MW :531 - 1602 kHz -/37 :530 - 1700 kHz Tuning range LW : 153 - 279 kHz IF frequency :450 kHz ± 1 kHz Sensitivity MW :≤ 3.5 mV/m at 26dB S/N LW :≤ 4.2 mV/m Selectivity MW : < 22 dB LW : < 35 dB IF rejection MW : < 64 dB Spurious rejection ratio MW : < 58 dB LW : < 51 dB Image rejection ratio MW : < 40 dB LW : < 47 dB AUDIO CASSETTE RECORDER Frequency response : 80 - 12500 Hz Wow & flutter : 0.4 % (DIN) Tape speed : 4.76 cm/s ± 2 % Channel difference1kHz : 0 dB S/N ratio (unw.) Ferro : 47 dB Chrome : 50 dB S/N ratio (wght.) Ferro : 52 dB Chrome : 56 dB COMPACT DISC Frequency response : 20Hz – 20kHz within 1.5dB S/N ratio (unw.) : > 85 dB S/N ratio (A-wght.) : > 90 dB THD+N 1 kHz : > 72 dB Channel crosstalk : > 50 dB Channel unbalance : < ±1 dB TECHNICAL SPECIFICATIONS
