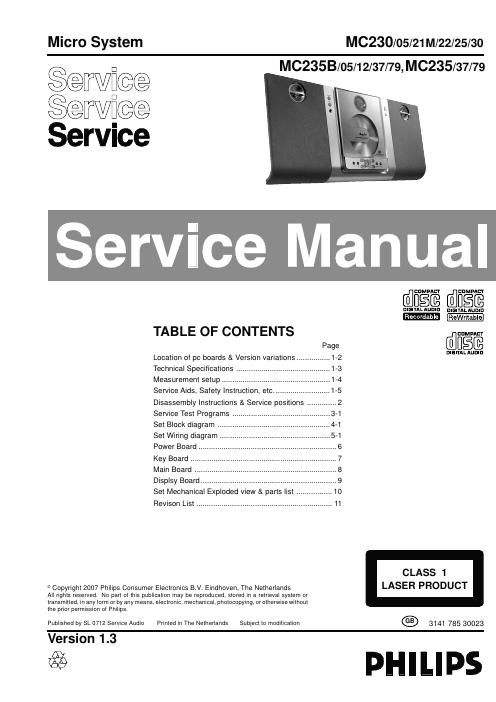

Philips mc 230 mc 235 mc 235 b
This is the 36 pages manual for philips mc 230 mc 235 mc 235 b.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips mc 230 mc 235 mc 235 b (Ocr-read)
Page 1
1-2 LOCATION OF PRINTED CIRCUIT BOARDS /21 /22 /25 /30 /37x x x x x n i R D C / n i x u A Line Out Video Out Surround Out Subwoofer Out Power Booster Out Digital Out Digital in Matrix Surround x x S D R x x s w e N Dolby Pro Logic (DPL) Incredible Surround Karaoke Features Vo x r o t c e l e S e g a t l ECO Power Standby (LCD Display Off) x x ECO6 Tuner Board - Systems Non-Cenelec x x x ECO6 Tuner Board - Systems Cenelec x x USB PC LINK VERSION VARIATIONS: Type /Versions: Features & Board in used: SPEAKER BOARD POWER BOARD DISPLAY BOARD KEY_A BOARD MAIN BOARD O B B _ Y E K R A D HEADPHONE BOARD KEY_C BOARD FM/AM BOARD MC230 MC235 /37/79 MC235B /79 /05 /12 xx xx x x x x x x x x x x xx
Page 2
1-3 SPECIFICA TIONS GENERAL: Mains voltage : 120/240V ± 15% Switchable for /21 120V ± 10% for /37 230V ± 10% for /22/25 240V ± 10% for /30 Mains frequency : 50/60Hz Clock accuracy : < 4 seconds per day Dimension centre unit : 250 x 245 x 96 (mm) Power consumption Active : 15W for /21/22/25/37/30 Standby : < 6W (DEMO mode off) ECO Power Standby : < 1W for /22/25 TUNER: FM T uning range : 87.5-108MHz Grid : 50kHz 100kHz for /21/37 IF frequency : 10.7MHz ± 20kHz Aerial input : 75 Ω coaxial 300 Ω for /37 Sensitivity at 26dB S/N : < 22dBf Selectivity at 300kHz bandwidth : > 33dB Image rejection : > 20dB [> 25dB] Distortion at RF=1mV, dev. 75kHz : < 3% -3dB Limiting point : < 23.5dB Crosstalk at RF=1mV, dev. 40kHz : > 26dB MW T uning range : 531-1602kHz 530-1700kHz for /21/37 Grid : 9kHz 10kHz for /21/37 IF frequency : 450kHz ± 1kHz Aerial input : Frame aerial 18.1 µH Sensitivity at 26dB S/N : < 4.0mV/M [> 3.25mV\ /M] Selectivity at 300kHz bandwidth : > 20dB IF rejection : > 24dB Image rejection : > 20dB [> 28 dB] Distortion at RF=50mV, M=80% : < 5% AMPLIFIER: Output power L & R : 2 x 5W FTC (4 Ω, 1kHz, 10% THD) Frequency response within -3dB : 60Hz-14kHz Digital Sound Control (DSC) : Jazz / Rock / Pop / Classic Dynamic Bass Boost (DBB) : Jazz / Rock / Pop / Classic Input sensitivity Aux in (at 1kHz) : 500mV at 600 Ω Output sensitivity Headphone output at 32 ohm : 15mW ± 2dB (Max. vol.) COMPACT DISC: Frequency response within ± 3dB : 63Hz - 14kHz Output level (in Vrms) : 500mV, Z out = 100 Ω Signal/Noise ratio (A-weighted) : > 67dBA Distortion at 1kHz : < 0.02% Channel unbalance at 1kHz : < ±2dB Channel separation at 1kHz : > 30dB Emphasis : 15/50 µS (switched automatically by CD10) THD Noise(1kHz) : < 1.5% Outband Attenuation : > 35dB [....] Values indicated are for /22/25 only.
