Extracted text from philips mc 157 service manual (Ocr-read)

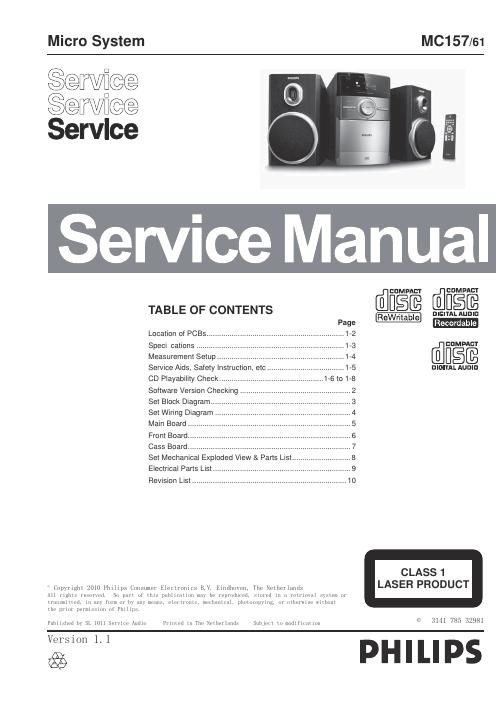

Page 1
PCBS LOCATION FRONT BOARDMAIN BOARD 1-2
Page 2
1-3 AMPLIFIER Output power ........................................... 2 x 2W RMS Signal-to-noise ratio .......................... t 60 dBA (IEC) Frequency response ....................... 125 – 16000 Hz Impedance loudspeakers ........................................... 8 : CD PLAYER Frequency range ............................... 125 – 16000 Hz Signal-to-noise ratio ............................................ 65 dBA TUNER FM wave range ................................... 87.5 – 108 MHz MW wave range ................................ 531 – 1602 kHz Sensitivity – FM 26 dB sensitivity .......................................... 20 µV – MW 26 dB sensitivity ................................... 5 mV/m Total harmonic distor tion ..................................... d 5% TAPE DECK Frequency response Normal tape (type I) ...... 125 – 8000 Hz (8 dB) Signal-to-noise ratio Normal tape (type I) .................................... 40 dBA Wow and flutter .............................................. d 0.4% JIS SPEAKERS Bass reflex system Dimensions (w x h x d) . 134 x 230 x 152 (mm) GENERAL INFORMATION AC Power ..................................... 220 – 230 V / 50 Hz Dimensions (w x h x d) .. 148 x 233 x 216 (mm) Weight (with/without speaker s) .................................. ......................................................... approx. 3.65 / 1.53 kg Power consumption Active ........................................................................\ .. 15 W Standby .................................................................... < 4 W Specifications and external appearance are subject to change without notice. SPECIFICATIONS
