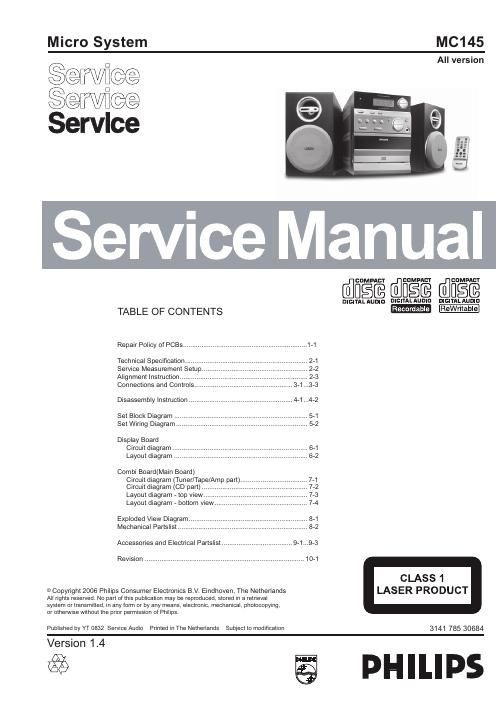

Philips mc 145 service manual
This is the 24 pages manual for philips mc 145 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips mc 145 service manual (Ocr-read)
Page 1
REPAIR POLICY OF PCBS 1-1 VERSION VARIATIONS: Type /Versions: Features Board in used:MC145 Service policy DISPLAY BOARD MAIN BOARD (COMBI BOARD) * TIPS : C -- Component Lever Repair. M -- Module Lever Repair √ -- Used /05 /12 8 5 59 // 61 / Feature diffrence C Type /Versions: MC 145 3 9 / 5 8 / 9 7 / 7 3 / C C C /05 /12 8 5 59 // 3 9 / 5 8 / 9 7 / 7 38 /7 / 61 / C C DISPLAY BOARD C C C 8 7 /
Page 2
2 - 1 SPECIFICATIONS GENERAL: Mains voltage /37 : 120V /55/85/98 : 110 / 220V switchable /12/61/79/93 : 220 – 240V Mains frequency : 50/60 Hz Power consumption : < 20W max. < 3W at standby Dimension center unit : 168 x 224.5 x 214.5 mm Dimension speaker : 130 x 224.5 x 213 mm TUNER: FM Tuning range : 87.5 - 108 MHz IF Frequency : 10.7 MHz 20kHz Sensitivity at 26sb S/N : < 18 V Selectivity at 600 kHz Bandwidth : > 45 dB IF rejection : > 50 dB Image rejection : > 20 dB Distortion : < 2% Crosstalk : > 20 dB MW Tuning range /37/55 : 530 -1700 kHz (10 kHz grid) others : 531 -1602 kHz (9 kHz grid) Grid : 9/10 kHz IF Frequency : 450 kHz 3kHz Aerial input : Inner bar antenna Sensitivity at 26sb S/N : < 4.4 mV/M Selectivity at 18 kHz Bandwidth : > 18 dB IF rejection : > 45 dB Image rejection : > 30 dB Distortion : < 5%AMPLIFIER: Output power : 2 x 2 W RMS Speaker impedance : 8 ohm Frequency response Within 3dB : 60Hz – 16 kHz Bass Boost ON : 6dB 3dB at 120Hz Headphone output : 32 mW 2dB at 32 CASSETTE RECORDER: Number of tracks : 2 x 2 stereo Tape speed : 4.76 cm/sec +2.5/-1.5% Wow and flutter : < 0.35% DIN Fast-wind/rewind time : < 130 sec. With C-60 Bias frequency : 75 10 kHz Frequency response (PB) : 125 – 8 kHz (8 dB) Signal to noise radio : > 35 dB with type 1 tape COMPACT DISC: No. of programming track : 20 Frequency response Within 3 dB : 63 Hz – 16 kHz Signal/Noise ratio : 50 dB/A-weighted Distortion at 1 kHz : < 3% Channel separation at 1 kHz : > 25 dB
