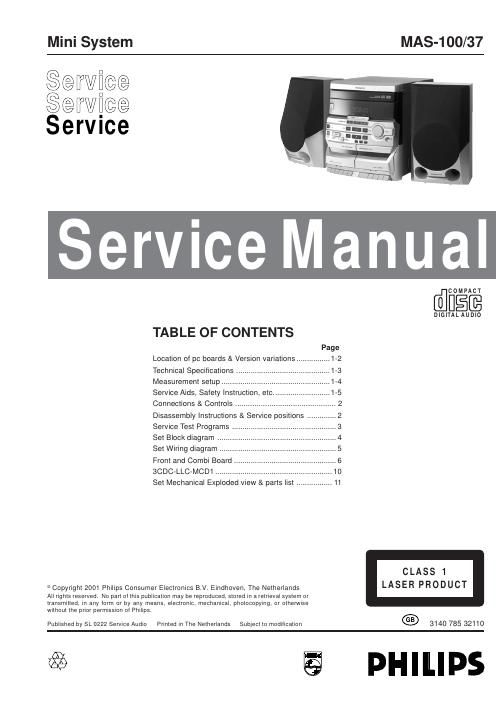

Philips mas 100 service manual

Page 2

1-3 SPECIFICATIONS GENERAL: Mains voltage : 120V for /37 Mains frequency : 60Hz Power consumption : < 11W at Standby 25W Active Clock accuracy : < 4 seconds per day Dimension centre unit : 265 x 310 x 330mm TUNER: FM Tuning range : 87.5-108MHz IF frequency : 10.7MHz ± 20kHz Aerial input : 300Ω Sensitivity at 26dB S/N : < 7µV Selectivity at 600kHz bandwidth : > 25dB Image rejection : > 25dB Distortion at RF=1mV, dev. 75kHz : < 3% -3dB Limiting point : < 8µV Crosstalk at RF=1mV, dev. 40kHz : > 18dB MW Tuning range : 530-1700kHz IF frequency : 450kHz ± 1kHz Aerial input : Frame aerial Sensitivity at 26dB S/N : < 4.4mV/M Selectivity at 18kHz bandwidth : > 18dB IF rejection : > 45dB Image rejection : > 28dB Distortion at RF=50mV, m=80% : < 5% AMPLIFIER: Output power 1) :2 x 5W ± 1dB Frequency response within -3dB : 50Hz-15kHz Dynamic Bass Boost : DBB ON, DBB Off 2) Digital Sound Control : Jazz, Techno, Optimal, Rock 2) Headphone output at 32Ω:900mV ± 1dB (max Vol.) CASSETTE RECORDER: Number of track : 2 x 2 stereo Tape speed : 4.76 cm/sec +2.5/-1.5% Wow and flutter : < 0.35% DIN Fast-wind/rewind time C60 : 130 sec Bias system : 75kHz ± 5kHz Rec/Pb frequency response within 8dB : 80Hz - 10kHz Signal to noise ratio : > 48dBA COMPACT DISC: Measurement done at output conn. of the CDC module. Frequency response within ± 1.5dB : 20Hz - 20kHz Output level (in Vrms) : 550mV, Z out = 100Ω Signal/Noise ratio (A-weighted) : > 80dBA Distortion at 1kHz : < 0.003% Channel unbalance at 1kHz :±1dB Channel separation at 1kHz : > 60dB De-emphasis : 0 or 15/50 mS (Switched by subcode on the disc) 1) 8 Ω, 1 kHz, 10% THD 2) Frequency response in each setting is software controlled.
