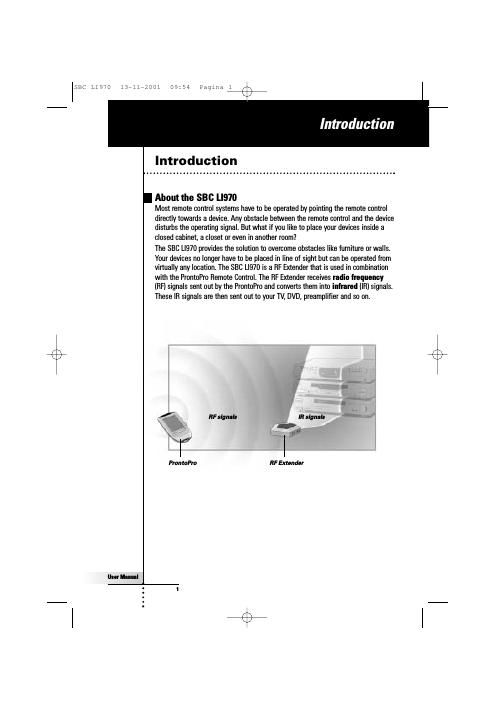

User Manual 2 Introduction Possible Set-ups The RF Extender can be used in several situations: - Your devices can be remotely controlled while the RF Extender is placed in line of sight (situation A). - The RF Extender controls devices placed in an adjacent room (situation B). - The RF Extender is placed inside a closet, a rack or another piece of furniture together with your devices (situation C). - The set-ups in situation A, B and C can be combined. If you want to control devices in different locations, you have to place a RF Extender in each location. You can control all RF Extenders with the same ProntoPro Remote Control. See Multiple RF Extenders on p. 6 to apply the necessary settings. Situation B Situation C Situation A SBC LI970 13-11-2001 09:54 Pagina 2
Page 2
User Manual 3 Installation Installation The following components should be present: RF Extender, power adapter, 4 dual IR emitters, mounting plate and 4 screws. Before you install the RF Extender, you should decide which of the set-ups described on p. 2 apply to your needs. It is recommended to read through the entire User Manual. Working Angle and Range of the IR blaster Warning The IR signals sent out by the RF Extender always have to be able to reach the receiving eyes of your devices. Make sure that the IR blaster (dark plastic window on top of the RF Extender) is aimed at your devices. To get optimal results, it is recommended to place the RF Extender horizontally with the IR blaster facing up or down. Figure 1represents the RF Extender mounted up side down inside a closet. Always maintain a minimum distance of 4 inches (10 cm) between the RF Extender and your devices. Figure 2represents the RF Extender with the IR blaster facing up. The RF Extender can be placed at a distance and higher than your devices. Make sure there are no objects between the RF Extender and the receiving eyes of the devices. Minimum distance: 4 inches (10 cm) Maximum distance: Approx. 16 feet (5 m) Figure 1: IR blaster facing down Figure 2: IR blaster facing up SBC LI970 13-11-2001 09:54 Pagina 3
