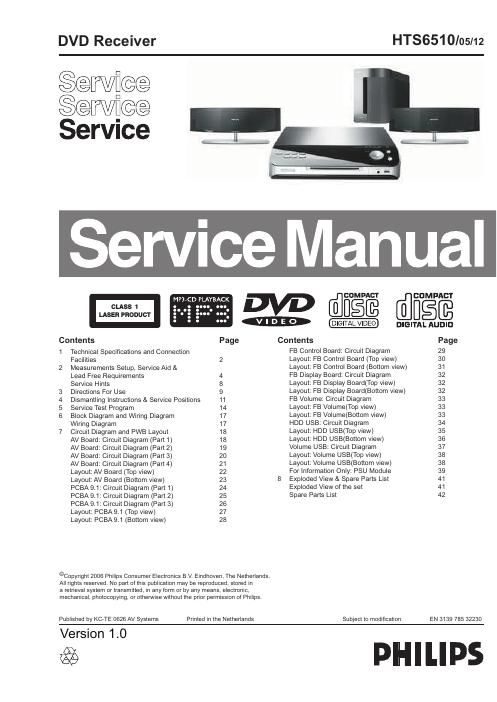

Philips hts 6510 service manual
This is the 42 pages manual for philips hts 6510 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips hts 6510 service manual (Ocr-read)
Page 1
EN 2 3139 785 32230 1. Technical Specifi cations and Connection Facilities LOCATION OF PC BOARDS Video (Yellow, Cinch) Component Video, (Y/Pb/Pr) -P-scan SCART (CVBS/RGB) Digital In - Coaxial TV In (Left/Right) Auxiliary (Left/Right) HDMI Power / Amp(VGA) Features &T ype /Versions: x _ x x x x x HTS6510/05/12 _ VERSION VARIATIONS:
Page 2
EN 3 3139 785 32230 Technical Specifi cations and Connection Facilities 1. 1. Specifi cations 1.1 General: Mains voltage : 230V Mains frequency : 50Hz Power consumption : < 80W at 1/8 P rated < 1W Eco Standby Power Dimension main unit : 340 x 70 x 330mm 1.2 Tuner FM Tuning range : 87.5-108MHz Grid : 50kHz IF frequency : 10.7MHz ± 25kHz Aerial input : 75Ω coaxial Sensitivity at 26dB S/N : < 7μV Selectivity at 59/300kHz bandwidth : > 25dB IF rejection : > 60dB Image rejection : > 25dB Distortion at RF=1mV, dev. 75kHz : < 3% -3dB Limiting point : 8μV Crosstalk at RF=1mV, dev. 67.5kHz : > 28dB 1.3 AMPLIFIER: Total output power : 500W L/R output power : 1 x 70W type: 75W Centre : 1 x 95W type: 100W Surround : 1 x 70W type: 75W Subwoofer : 1 x 95W type: 100W Frequency response ±3dB : 150Hz-20kHz Hum (Volume Minimum) : 200nW Residual noise (Volume Minimum) : 40nW Input sensitivity Aux In : 1V ± 3dB at 39kΩ Scart In : 0.5V ± 3dB at 39kΩ 1.4 COMPACT DISC/VCD/DVD: Video Decoding : MPEG-1/MPEG-2/ DivX 3/4/5/6, Ultra Video DAC : 12 Bits Signal System : PAL / NTSC Video Format : 4:3 / 16:9 CVBS Out 1) CVBS level : 1.0 ± 0.1V p-p Luminance S/N : >= 55dB RGB/YUV Out 1) Amplitude : 0.7 ± 0.1V p-p S/N : >= 60dB S-Video Out 1) Y level : 1.0 ± 0.1V p-p Y S/N : >= 60dB C level (burst) : 286mV p-p +1/-4dB (NTSC) 300mV p-p +1/-4dB (PAL) 1) Output terminals to be terminated with 75Ω
