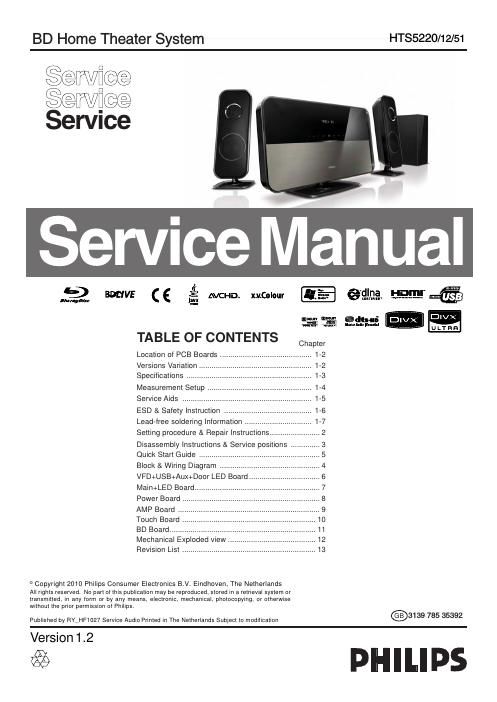

Philips hts 5220 service manual
This is the 44 pages manual for philips hts 5220 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips hts 5220 service manual (Ocr-read)
Page 1
1 - 2 LOCATION OF PCB BOARDS VERSION VARIATION: Type/Versions Features HTS5220 Output Power - 400W Voltage (220~240V) Scart Main+LED Board VFD+USB+AUX+Door LED Board BD Board Type/Versions Board in used HTS5220 /12 REPAIR SCENARIO MATRIX: *Bd = Board Level Replacement *C = Component Level Repair Power Board Touch Board AMP Board C C Bd C C C /12 x x TOUCH PCB VFD PCB POWER PCB DOOR LED PCB LED PCB BD PCB MAIN PCB AUX PCB POWER PCB USB PCB AMP PCB TOP VIEW BOTTOM VIEW /51 C C Bd C C C /51 x x x Voltage (110-127V/220~240V) x
Page 2
1 - 3 SPECIFICATIONS Playback media AVCHD, BD-RE, BD-Video, DVD-Video,DVD+R/+RW, DVD-/- RW, DVD+R/-RDL, CD-R/CD-RW, Audio CD, Video CD/SVCD, Picture CD, MP3-CD, WMA-CD,DivX (Ultra)-CD, USB storage device File Format Audio ............................................................ .mp3, .wma, .wav Video ................................... avi, .divx, .mp4, .mkv, .mov, .wmv Picture ................................................................. .jpg, .gif, .png Amplifier Total output power ................................................. 400 W RMS Frequency response ................................. 20Hz-20 kHz / ±3dB Signal-to-noise ratio .................. > 65 dB (CCIR) / (A-weighted) Input sensitivity ........................................................................\ .. AUX1, AUX2 ................................................................ 1000 mV MP3 LINK ...................................................................... 550 mV Video Signal system ........................................................ PAL / NTSC Component video output ..... 480i/576i, 480p/576p, 720p, 1080i HDMI output ........... 480i/576i, 480p/576p, 720p, 1080i, 1080p, 1080p24 Audio S/PDIF Digital audio input ......................................................... Coaxial .................................................................. IEC 60958-3 Sampling frequency ................................................................... MP3 .................................................. 32 kHz, 44.1 kHz, 48 kHz WMA .............................................................. 44.1 kHz, 48 kHz Constant bit rate ........................................................................\ MP3 .......................................................... 112 kbps - 320 kbps WMA ........................................................... 48 kbps - 192 kbps Radio Tuning range .................................. FM 87.5-108 MHz (50 kHz) Signal-to-noise ratio .................................................... FM 55 dB Frequency respose ........................ FM 60 Hz~12.5 kHz / ±3dB USB Compatibility .............................................. Hi-Speed USB (2.0) Class support ........................ UMS (USB Mass Storage Class) File system ........................................................ FAT16, FAT32 Maximum memory support .......................................... < 160GB Main Unit Power supply ........................................................................\ ..... Aisa Pacifi c/Latin America .......110-127V/220-240V; ~50-60 Hz Russia/China/India ......................................... 220-240V,~50Hz Power consumption ......................................................... 100W Standby power consumption ........................................ ≤ 0.3 W Dimensions (WxHxD) ............................ 434 x 253 x 129 (mm) Weight ........................................................................\ ..... 3.6 kg Speakers System .......................................................... full range satellite Speaker impedance ......................................................... 6 ohm Speaker drivers .......... 1 x 76mm(3)woofer +25mm(1) tweeter Frequency response .......................................... 150 Hz-20 kHz Dimension (WxHxD) ................................. 114 x 316 x114(mm) Weight .................................................................\ ...........1.03 kg Cable length: ....................................................................... 2 m Subwoofer Impedance ..............................................................\ ......... 3 ohm Speaker drivers ....................................... 165 mm (6.5) woofer Frequency response ............................................ 40 Hz-150 Hz Dimensions (WxHxD) ............................. 196 x 395 x 342 (mm) Weight ........................................................................\ ... 5.25 kg Cable length ........................................................................\ 4 m Laser specification Laser Type (Diode) ..................................... InGaN/AIGaN (BD), InGaAIP (DVD), A IGaAs (CD) Wave length ...................................... 405 +5nm/-5nm (BD), 650 +13nm/-10nm (DVD), 790 +15nm/-15nm(CD) Output power (Max. ratings) ........ 20mW (BD),7mW (DVD/CD) Specifi cations subject to change without prior notice.
