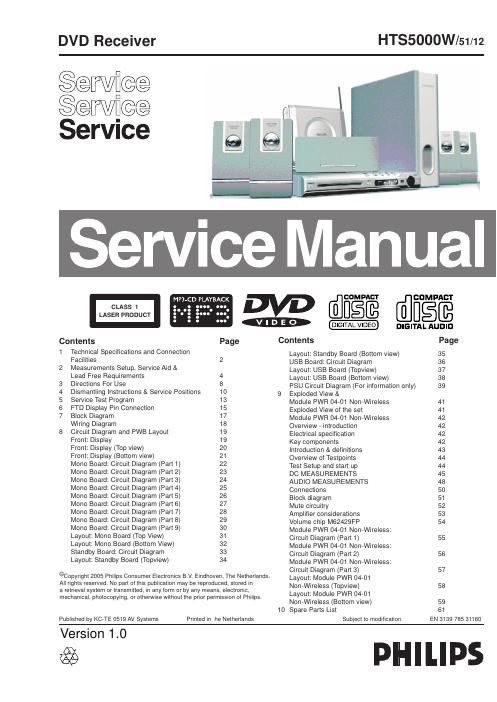

Philips hts 5000 w service manual
This is the 61 pages manual for philips hts 5000 w service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips hts 5000 w service manual (Ocr-read)
Page 1
EN 2 HTS5000W 1. Technical Specifi cations and Connection Facilities VERSION VARIATIONS: HTS5000W/12 HTS5000W/51 Video (Yellow, Cinch) x x Component Video, (Y/Pb/Pr) -P-scan xx SCART (CVBS/RGB) x- Digital In - Coaxial xx TV In (Left/Right) -x Auxiliary (Left/Right) xx Line out (Audio) xx
Page 2
EN 3 HTS5000W Technical Speci fi cations and Connection Facilities 1. 1. Specifi cations 1.1 General: Mains voltage : 230V for /12, /51 Mains frequency : 50Hz for /12, /51 Power consumption : 100W < 0.5W Eco standby power < 100W at 1/8 P rated (For main unit) Dimension main unit : 360 x 54 x 324mm 1.2 Tuner FM Tuning range : 87.5-108MHz Grid : 50kHz for /12, /05, /51 IF frequency : 10.7MHz ± 25kHz Aerial input : 75Ω coaxial Sensitivity at 26dB S/N : < 7μV Selectivity at 600kHz bandwidth : > 25dB IF rejection : > 60dB Image rejection : > 25dB Distortion at RF=1mV, dev. 75kHz : < 3% -3dB Limiting point : < 8μV Crosstalk at RF=1mV, dev. 67.5kHz : > 28dB Crosstalk at RF=1mV, dev. 40kHz : > 18dB MW Tuning range : 531-1602kHz for /12, /51, /98 Grid : 9kHz for /12, /51, IF frequency : 450kHz ± 1kHz Aerial input : Frame aerial Sensitivity at 26dB S/N : < 4.0mV/M Selectivity at 18kHz bandwidth : > 20dB IF rejection : > 45dB Image rejection : > 28dB Distortion at RF=50mV, m=80% : < 5% 1.3 AMPLIFIER: Output power Front : 75W RMS / channel Rear : 75W RMS / channel Center : 100W RMS Subwoofer : 100W RMS Frequency response ±0.5dB : 120Hz-20kHz Hum (Volume Minimum) : 200nW Residual noise (Volume Minimum) : 40nW Input sensitivity Aux In : 1V ± 3dB at 22k Ω Scart In : 1V ± 3dB at 22kΩ Output sensitivity Line Out (Left/Right) : 1V ± 2dB at 10k Ω Scart Out (Left/Right) : 1V ± 2dB at 10k Ω 1.4 COMPACT DISC/VCD/DVD: Video Decoding : MPEG-1/MPEG-2/ MPEG-4/DivX 3.11, 4.x & 5.x Video DAC : 12 Bits Signal System : PAL / NTSC Video Format : 4:3 / 16:9 CVBS Out 1) CVBS level : 1.0 ± 0.1V p-p Luminance S/N : >= 60dB S-Video Out 1) Y level : 1.0 ± 0.1V p-p Y S/N : >= 60dB C level (burst) : 286mV pp +1/-4 dB RGB/YUV Out 1) Amplitude : 1.0 ± 0.1V p-p S/N : >= 60dB 1) Output terminals to be terminated with 75Ω
