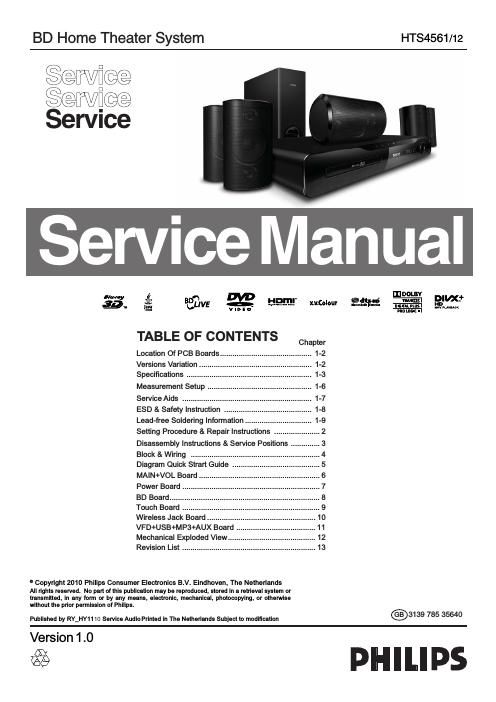

Philips hts 4561 service manual

This is the 45 pages manual for philips hts 4561 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 45
philips hts 4561 service manual

Extracted text from philips hts 4561 service manual (Ocr-read)


Page 1

1 - 2 LOCATION OF PCB BOARDS VERSION VARIATION: Type/Versions Features HTS4561 Output Power - 1000W Voltage (220~240V) Main+VOL Board VFD+USB+MP3+AUX Board BD Board Type/Versions Board in usedHTS4561 C C Bd /12 SERVICE SCENARIO MATRIX: /12 x x Power Board Touch Board Wireless Jack Board *Bd= Board Level Replacement *C = Component Level Repair x Wireless ready KBDL QPXFS Bd Bd Bd

Page 2

1 - 3 SPECIFICATIONS File formats Audio: .aac,.mka, .mp3, .wma, .wav, .mp4, .m4a Video: .avi,.divx, .mp4, .mkv, .asf,.wmv, .mpg, .mpeg, .rmvb, .rm (Available only in Asia Pacific and China) Picture: .jpg, .jpeg, .gif, .png Audio formats Your home theater suppor ts the following audio files. Extension Container Audio codecBit rate .mp3 MP3 MP3 32kbps ~ 320kbps .wma ASF WMA 64k bps ~ 16 0 k b ps .aac AAC AAC, HE-AAC192 k b ps .wav WAV PCM 1.4Mbps .m4a MKV AAC 192kbps .mka MKA PCM 27.648 Mbps .mka MKA AC-3 640kbps .mka MKA DTS core 1.54Mbps .mka MKA MPEG 912kbps .mka MKA MP3 32kbps ~ 320kbps .mka MKA WMA 64kbps ~ 16 0 k b ps .mka MKA AAC, HE-AAC192 k b ps Video formats If you have a high definition T V, your home theater allows you to play your video files with: Resolution: 1920 x 1080 pixels at Frame rate: 6 ~ 3 0 frames per second. .avi files in AVI container - - - - -- - Media formats AVCHD, BD, BD-R / BD-RE, BD-Video, DVD-Video, DVD+R/+RW, DVD-R/- RW, DVD+R /-R DL, CD-R /CD-RW, Audio CD, Video CD/SVCD, Picture files, MP3 media, WMA media, DivX (Ultra)/ DivX Plus HD media, USB storage device - Audio codecVideo codec Bit rate PCM, AC-3, DTS core, MP3, WMADivX 3 .11, DivX 4.x, DivX 5.x, DivX 6.x10 Mbps ma x MPEG 1, MPEG 2 20Mbps (peak 40Mbps) MPEG 4 ASP 10Mbps max H.264/AVC HP@4.1/4.0; MP@3.2/3.1/3.020Mbps (peak 40Mbps) WMV9 20Mbps .divx files in AVI container Audio codecVideo codec Bit rate PCM, AC-3, MP3, WMADivX 3 .11, DivX 4.x, DivX 5.x, DivX 6.x10 Mbps ma x MPEG 1, MPEG 2 20Mbps (peak 40Mbps) MPEG 4 ASP 10Mbps max
