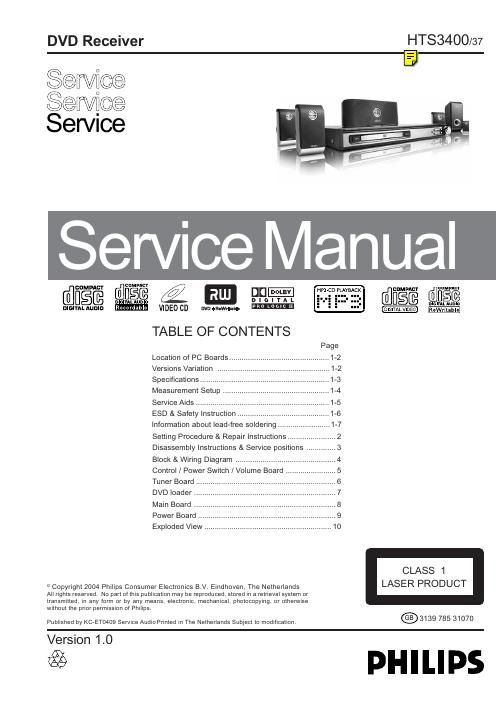

Philips hts 3400 service manual
This is the 35 pages manual for philips hts 3400 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips hts 3400 service manual (Ocr-read)
Page 1
1-2 / 37 RDS Rotary Encoder (volume control) x Aux Input x Digital Output x Line Output x Progressive scan x Power supply (120V) x LOCATION OF PC BOARDS VERSION VARIATION: Type /Versions: HTS3400 Features & Board in used: VOL. PCB CONTROL PCB LED PCB TUNER PCB POWER PCBMAIN PCB
Page 2
SPECIFICATIONS AMPLIFIER SECTION Output power........................................500 W Total power - Front................................................70 W RMS / channel ........................................................... 60 W FTC {/channel - Rear.................................................70 W RMS / channel - Center..............................................................70 W RMS - Subwoofer.....................................................100 W RMS Frequency Response..................180 Hz - 14 kHz / ±3 dB Signal-to-Noise Ratio............................ > 60 dB (A-weight) Input Sensitivity AUX/TV In...............................................................400 mV { 8ohm, 120Hz-12.5 KHz, 10% THD TUNER SECTION Tuning Range......... FM 87.5 – 108 MHz ( 100 kHz steps) ...................................AM 530 – 1710 kHz (10 kHz steps) 26 dB Quieting Sensitivity.................................FM 20 dBf 26 dB Quieting Sensitivity..........................AM 5000 µV/m Image Rejection Radio.......................................FM 25 dB ............................................................................ AM 28 dB IF Rejection Ratio...............................................FM 60 dB ............................................................................ AM 24 dB Signal-to-Noise Ratio..........................................FM 55 dB ............................................................................ AM 40 dB AM Suppression Ratio........................................FM 30 dB Harmonic Distortion......................................FM Mono 3 % ....................................................................FM Stereo 3 % ............................................................................... AM 5 % Frequency Response............FM180 Hz – 10 kHz / ±6 dB Stereo Separation...................................FM 26 dB (1 kHz) Stereo Threshold.............................................FM 23.5 dB DISC SECTION Laser Type..................................................Semiconductor Disc Diameter..................................................12cm / 8cm Video Decoding...................................MPEG-2 / MPEG-1 Video DAC...............................................................10 Bits Signal System.................................................. PAL / NTSC Video Format.......................................................4:3 / 16:9 Video S/N................................................56 dB (minimum) Composite Video Output............................1.0 Vp-p, 75 Ω S-Video Output...................................... Y - 1.0 Vp-p, 75 Ω .......................................................... C - 0.286 Vp-p, 75 Ω Audio DAC.................................................24 Bits / 96 kHz Frequency Response.................. 4 Hz - 20 kHz (44.1kHz) ........................................................ 4 Hz - 22 kHz (48kHz) ....................................................... 4 Hz - 44 KHz (96KHz) Digital Output...................................................................... ...................SPDIF (Sony Philips digital interface) Coaxial - PCM.................................................................IEC 60958 - Dolby Digital.................................IEC 60958, IEC 619371-3 MAIN UNIT Power Supply Rating....................................120 V / 60 Hz Power Consumption..................................................160W Dimensions (w × h × d)...................... 435× 53 × 365 (mm) Weight.................................................................... 4.35 kg SPEAKERS Front/Rear speakers System............................2-way, Not magnetically sheided Impedance....................................................................3 Ω Speaker drivers........................... 3" full-range woofer, 1" conical dome tweeter Frequency response................................140 Hz – 20 kHz Dimensions (w × h × d).......................93 × 169 × 65 (mm) Weight...........................................0.73 kg (Front speaker) 0.77 kg (Rear speaker) CENTER SPEAKERS System................................2-way, maganetically sheided Impedance....................................................................3 Ω speaker drivers............................2 x 3" full-range woofer, 1" conical dome tweeter Frequency response................................140 Hz – 20 kHz Dimensions (w × h × d).......................245 × 93 × 70 (mm) Weight.....................................................................1.37 kg PASSIVE SUBWOOFER Impedance.................................................................... 3 Ω speaker drivers............................................. 6 1/2" woofer Frequency response................................40 Hz – 120 kHz Dimensions (w × h × d)...................156 × 360 × 350 (mm) Weight.......................................................................4.3 kg
