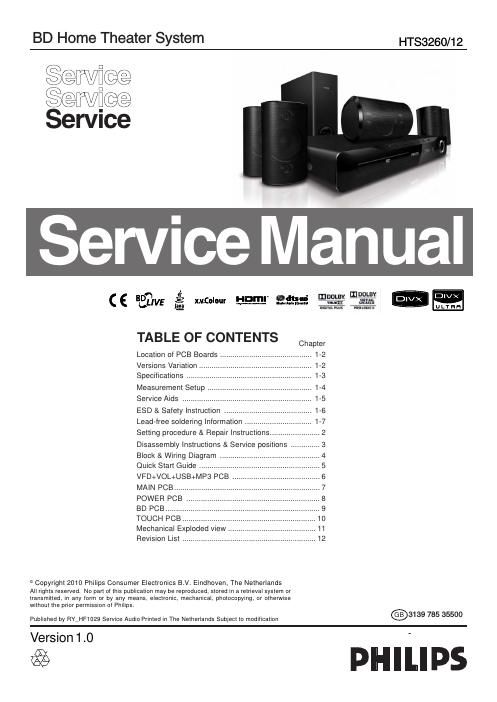

Philips hts 3260 service manual
This is the 50 pages manual for philips hts 3260 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips hts 3260 service manual (Ocr-read)
Page 1
1 - 2 LOCATION OF PCB BOARDS VERSION VARIATION: Type/Versions Features HTS3260 Output Power - 300W Voltage (220~240V) AUX/MP3 Main Board VFD+VOL+USB+MP3 Board BD Board Type/Versions Board in used HTS3260 C C Bd /12 SERVICE SCNARIO MATRIX: /12 x x x *C = Component Level Repair Power Board C Touch Board C BD PCB MAIN PCB TOUCH PCB VFD PCBVol+USB+MP3 PCBB POWER PCB *Bd = Board Level Replacement
Page 2
1 - 3 SPECIFICATIONS Playback media BD-Video, DVD-Video, DVD+R/+RW,DVD-R/-RW, DVD+R/- R DL, CD-R/CDRW,Audio CD, Video CD/SVCD, PictureCD, MP3-CD, WMA-CD, DivX (Ultra)-CD, USB fl ash drive. File Format Audio ..................................................................\ ...... mp3, .wma Video ...................................................... .avi, .divx, .mkv, .wmv Picture .................................................................. .jpg, .gif, .png Amplifier Total output power ................................300 W RMS (30%THD) Frequency response .................................. 20 Hz-20 kHz /±3dB Signal-to-noise ratio... ................. > 65 dB (CCIR) /(A-weighted) Input sensitivity: AUX ........................................................................\ ...... 500 mV MP3 LINK ...................................................................... 300 mV Video Signal system ........................................................ PAL / NTSC HDMI output ............. 480i/576i, 480p/576p,720p, 1080i, 1080p Audio Sampling frequency: MP3 .................................................. 32 kHz, 44.1 kHz, 48 kHz WMA ............................................................... 44.1 kHz, 48 kHz Constant bit rate: MP3 ........................................................... 112 kbps - 320 kbps WMA ............................................................ 48 kbps - 192 kbps Radio Tuning range .................................. FM 87.5-108 MHz (50 kHz) Signal-to-noise ratio .................................................... FM 55 dB Frequency response ....................... FM 180 Hz-12.5 kHz/ ±3dB USB Compatibility ...............................................Hi-Speed USB (2.0) Class support ......................... UMS (USB Mass Storage Class) File system ............................................. FAT16, FAT32, NTFS Maximum memory support .......................................... < 160GB Main Unit Power supply ................................................ 220-240V; ~50 Hz Power consumption ............................................................ 55W Standby power consumption ........................................ ≤ 0.9 W Dimensions (WxHxD) ................................ 360 x 58 x 351(mm) Weight .................................................................\ ...........3.15 kg Speakers Speaker impedance ......................................................... 8 ohm Speaker drivers ....................................... 1 x 3woofer+1twitter Frequency response ...........................................150 Hz-20 kHz Dimensions (WxHxD): ............................... 114x 311x114 (mm) Weight: ........................................................................\ .. 0.88 kg Cable length: ....................................................................... 4 m Subwoofer Impedance ..............................................................\ ......... 4 ohm Speaker drivers ....................................... 165 mm (6.5) woofer Frequency response ............................................ 40 Hz-150 Hz Dimensions (WxHxD) .............................. 123 x 369 x 309(mm) Weight .................................................................\ ...........3.84 kg Cable length ........................................................................\ 4 m Laser specification Laser Type (Diode) ...................................... InGaN/AIGaN (BD) ................................................... InGaAIP (DVD), A IGaAs (CD) Wave length .............................................. 405 +5nm/-5nm (BD) ............................................................ 650+13nm/-10nm (DVD) ...............................................................790 +15nm/-15nm(CD) Output power (Max. ratings) ......... 20mW(BD), 7mW (DVD/CD) Specifi cations subject to change without prior notice.
