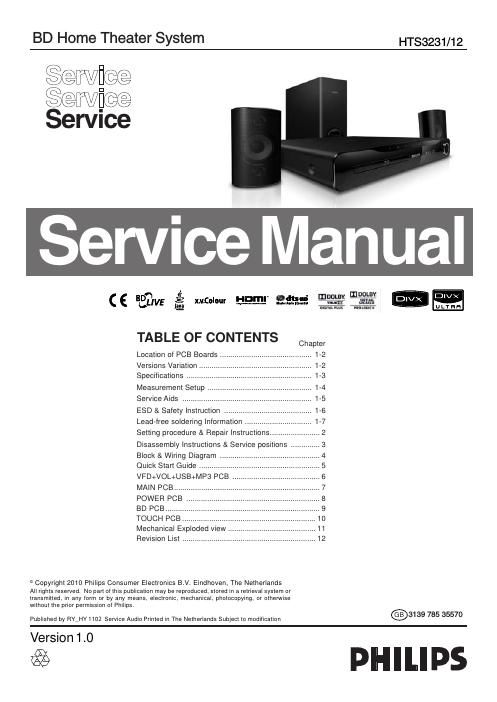

Philips hts 3231 service manual

Page 2

1 - 3 SPECIFICATIONS Playback media BD-Video, DVD-Video, DVD+R/+RW,DVD-R/-RW, DVD+R/- R DL, CD-R/CDRW,Audio CD, Video CD/SVCD, PictureCD, MP3-CD, WMA-CD, DivX (Ultra)-CD, USB fl ash drive. File Format Audio ..................................................................\ ...... mp3, .wma Video ...................................................... .avi, .divx, .mkv, .wmv Picture .................................................................. .jpg, .gif, .png Amplifier Total output power ................................ 300 W RMS (30%THD) Frequency response .................................. 20 Hz-20 kHz /±3dB Signal-to-noise ratio... ................. > 65 dB (CCIR) /(A-weighted) Input sensitivity: AUX ........................................................................\ ...... 1000 mV MP3 LINK ...................................................................... 500 mV Video Signal system ........................................................ PAL / NTSC HDMI output ............. 480i/576i, 480p/576p,720p, 1080i, 1080p Audio Sampling frequency: MP3 .................................................. 32 kHz, 44.1 kHz, 48 kHz WMA ............................................................... 44.1 kHz, 48 kHz Constant bit rate: MP3 ........................................................... 112 kbps - 320 kbps WMA ............................................................ 48 kbps - 192 kbps Radio Tuning range .................................. FM 87.5-108 MHz (50 kHz) Signal-to-noise ratio .................................................... FM 55 dB Frequency response ....................... FM 180 Hz-12.5 kHz/ ±3dB USB Compatibility ...............................................Hi-Speed USB (2.0) Class support ......................... UMS (USB Mass Storage Class) File system ............................................. FAT16, FAT32, NTFS Maximum memory support .......................................... < 160GB Main Unit Power supply ................................................ 220-240V; ~50 Hz Power consumption ............................................................ 55W Standby power consumption ........................................ ≤ 0.9 W Dimensions (WxHxD) ................................ 360 x 58 x 351(mm) Weight .................................................................\ ........... 3.1 kg Speakers Speaker impedance ......................................................... 8 ohm Speaker drivers ....................................... 1 x 3woofer+1twitter Frequency response ...........................................150 Hz-20 kHz Dimensions (WxHxD): ............................... 95 x161x 87 (mm) Weight: ........................................................................\ .. 0.56 kg Cable length: .......................................................................3 m Subwoofer Impedance ..............................................................\ ......... 4 ohm Speaker drivers ....................................... 165 mm (6.5) woofer Frequency response ............................................ 40 Hz-150 Hz Dimensions (WxHxD) ..............................123 x 309 x 369(mm) Weight .................................................................\ ...........3.56 kg Cable length ........................................................................\ 4 m Laser specification Laser Type (Diode) ...................................... InGaN/AIGaN (BD) ................................................... InGaAIP (DVD), A IGaAs (CD) Wave length .............................................. 405 +5nm/-5nm (BD) ............................................................ 650+13nm/-10nm (DVD) ...............................................................790 +15nm/-15nm(CD) Output power (Max. ratings) ......... 20mW(BD), 7mW (DVD/CD) Specifi cations subject to change without prior notice.
