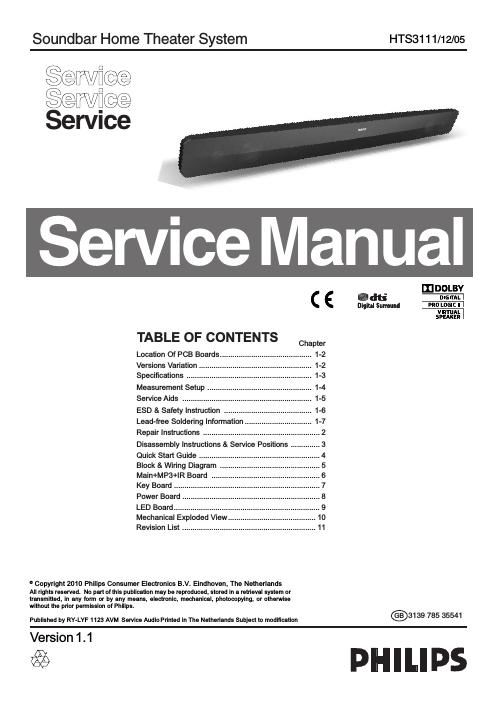

Philips hts 3111 service manual
This is the 34 pages manual for philips hts 3111 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips hts 3111 service manual (Ocr-read)
Page 1
1 - 2LOCATION OF PCB BOARDSVERSION VARIATION:Type/VersionsFeatures HTS3111Output Power - 100W Voltage ( 110-240V)Main+MP3+IR BoardPower BoardLED BoardType/VersionsBoard in usedHTS3111REPAIR SCENARIO MATRIX:*Bd = Board Level Replacement *C = Component Level RepairKey BoardC C /12CC /12x xPOWER AUXxHTS3111 HTS3111C C /05C C /05x x x
Page 2
1 - 3 SPECIFICATIONS Amplifier Total output power ................................ 100 W RMS (30%THD) ............................................................... 75 W RMS (10% THD) Frequency response .................................. 20 Hz-20 kHz /±3dB Signal-to-noise ratio .................... > 65 dB (CCIR) /(A-weighted) Input sensitivity: AUX .................................................................................. 1.0 V MP3 LINK .......................................................................... 0.5 V Audio S/PDIF Digital audio input: Coaxial ................................................................... IEC 60958-3 Optical ....................................................................... TOSLINK Main Unit Power supply .......................................... 110-240 V~; 50-60 Hz Power consumption ........................................................... 20 W Standby power consumption ............................................ ≤ 1 W Impedance .................................... 4 ohm woofer, 4 ohmtweeter Speaker drivers ...... 65 mm (2.5) woofer, 38mm (1.5) tweeter Frequency response ........................................ 150 Hz ~ 20 kHz Dimensions (WxHxD) ..................................... 945 x 93 x 58mm Weight ..............................................................................1.7 kg Subwoofer Impedance ....................................................................... 3 ohm Speaker drivers ....................................... 165 mm (6.5) woofer Frequency response ............................................ 40 Hz-150 Hz Dimensions (WxHxD) ................................. 123 x 309 x 369mm Weight ............................................................................3.81 kg Cable length ........................................................................ 4 m Wall Mount Dimensions (WxHxD) ..................................... 260 x 40 x 15mm Weight ........................................................................... 0.16 kg Specifi cations subject to change without prior notice.
