Philips hts 3010 3000 service manual
This is the 29 pages manual for philips hts 3010 3000 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips hts 3010 3000 service manual (Ocr-read)

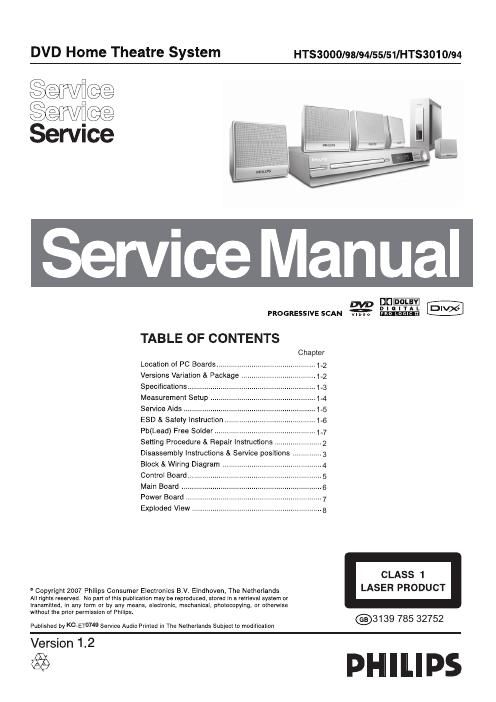

Page 1
- 0 $ " 5 * 0 / 0 ' 1 $ # # 0 " 3 % 4 7 & 3 4 * 0 / 7 " 3 * " 5 * 0 / STANDY PCB CONTROL PCBVOL PCB TUNER PCB MAIN PCB POWER PCB 1 P X F S 7 P M U B H F 5 Z Q F 7 F S T J P O ' F B U V S F # P B S E J O V T F E ) 5 4 ) 5 4 . B J O 1 $ # 1 P X F S 0 V U Q V U 8 1 P X F S 7 P M U B H F 7 8 . " 9 9 9 9 9 9 9 9 9 1 P X F S $ P S E % F U B D I B C M F 9 9 1 P X F S 7 P M U B H F 7 9 9 9
Page 2
1-3 Specif cations AMPLIFIER Total output power -Home Theater Mode: .................................................... 200 W Frequency Response: ....................... 180 Hz – 18 kHz / ±3 dB Signal-to-Noise Ratio: ..............................> 60 dB (A-weighted) Input Sensitivity - AUX In : ...................................................................... 500 mV - TV In: .......................................................................... 250 mV RADIO Tuning Range: ............................................. FM 87.5–108 MHz .............................................................................. (50k/100kHz) .......................................................... AM 531–1602 kHz (9kHz) ...................................AM 530–1700 kHz (10kHz) (for/98/94/55) Tuning Range: ............................................. FM 87.5–108 MHz ....................................................................................... (50kHz) ..............................................AM 531–1602 kHz (9kHz) (for/51) 26 dB Quieting Sensitivity: ....................................... FM 22 dBf, AM 5000 V/m IF Rejection Ratio: ................................... FM 60 dB, AM 24 dB Signal-to-Noise Ratio: .............................. FM 50 dB, AM 30 dB AM Suppression Ratio: .............................................. FM 30 dB Harmonic Distortion: ............................................ FM Mono 3% ............................................................................ FM Stereo 3% ........................................................................................ AM 5% Frequency Response ...................... FM 180 Hz–9 kHz / ±6 dB Stereo Separation ......................................... FM 26 dB (1 kHz) Stereo Threshold .................................................... FM 23.5 dB DISC Laser Type Semiconductor Disc Diametre ......................................................... 12cm / 8cm Video Decoding ........................................ MPEG-1 / MPEG-2 / .............................................................................. / DivX 3/4/5/6 Video DAC ..................................................................... 12 Bits Signal System ........................................................ PAL / NTSC Video Format ............................................................. 4:3 / 16:9 Video S/N ...................................................... 56 dB (minimum)Composite Video Output ................................................................. 1.0 Vp-p, 75 Audio DAC ....................................................... 24 Bits / 96 kHz Frequency Response ......................... 4 Hz–20 kHz (44.1 kHz) ................................................................ 4 Hz–22 kHz (48 kHz) ................................................................ 4 Hz–44 kHz (96 kHz) PCM ......................................................................... IEC 60958 Dolby Digital ......................................... IEC 60958, IEC 61937 MAIN UNIT Power Supply Rating: ............................ 110-240 V~; 50-60 Hz Power Consumption: ........................................................ 40 W Dimensions: ....................................... 360 x 48.5 x 324.1 (mm) ................................................................................... (w x h x d) Weight: ..........................................................................2.58 kg FRONT AND REAR SPEAKERS System: ........................................................ Full range satellite Impedance: .......................................................................... 4 Speaker drivers: ....................................... 3 full range speaker Frequency response: ...................................... 150 Hz – 20 kHz Dimensions: ......................................... 100 x 95.5 x 83.5 (mm) ................................................................................... (w x h x d) Weight: ................................................................. 0.47 kg/each CENTRE SPEAKER System: ........................................................ Full range satellite Impedance: .......................................................................... 8 Speaker drivers: .......................................3 full range speaker Frequency response: ...................................... 150 Hz – 20 kHz Dimensions: ......................................... 100 x 95.5 x 83.5 (mm) ................................................................................... (w x h x d) Weight: ..........................................................................0.52 kg SUBWOOFER Impedance: .......................................................................... 8 Speaker drivers: ..................................... 165 mm (6.5) woofer Frequency response: ........................................40 Hz – 150 Hz Dimensions: ........................................ 131 x 386 x 315.5 (mm) ................................................................................... (w x h x d) Weight: ..........................................................................3.60 kg Specif cations subject to change without prior notice.
