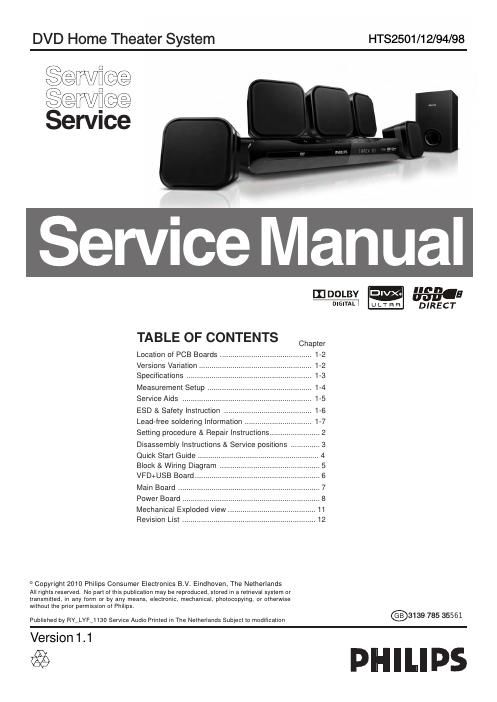

Philips hts 2501 service manual
This is the 32 pages manual for philips hts 2501 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips hts 2501 service manual (Ocr-read)
Page 1
1 - 2 LOCATION OF PCB BOARDS VERSION VARIATION: REPAIR SCENARIO MATRIX: *C = Component Level Repair POWER PCB MAIN PCB VFD PCB USB PCB Type/Versions Features HTS2501 Output Power - 240W Output Power - 300W Voltage (110-240V) /12 x x AUX x /94 x x x x Main Board VFD+USB Board Type/Versions Board in used HTS2501 Power Board C C /12 C CC C /94 /98 x x x x C C C /98
Page 2
1 - 3 SPECIFICATIONS Playback media DVD-Video, DVD+R/+RW, DVD-R/-RW, CD-R/CD-RW, Audio CD, Video CD/SVCD, Picture CD, MP3-CD, WMA-CD, DivX- CD, USB storage device File Format Audio ...................................................................... .mp3, .wma Video ....... .divx, .divx ultra, .mpeg, .mpg, .wmv (simple profi le) Picture ....................................................................... .jpeg, .jpg Amplifier Total output power ............................. 240 W RMS (10% THD), ........................................ 300 W RMS (30% THD) (for:/94/98) Frequency response .................................. 20 Hz-20 kHz /±3dB Signal-to-noise ratio .................... > 65 dB (CCIR) /(A-weighted) Input sensitivity ........................................................................\ .. AUX ........................................................................\ ... 1000 mV Video Signal system ........................................................ PAL / NTSC Audio Sampling frequency ................................................................... MP3 ................................................ 32 kHz, 44.1 kHz, 48 kHz WMA ............................................................ 44.1 kHz, 48 kHz Constant bit rate ........................................................................\ MP3 ........................................................ 112 kbps - 320 kbps WMA ......................................................... 48 kbps - 192 kbps Radio Tuning range .................................. FM 87.5-108 MHz (50 kHz) Signal-to-noise ratio .................................................... FM 50 dB Frequency response .......................... FM 180 Hz-10 kHz/ ±6dB USB Compatibility ..........................................................\ ............. USB Class support ......................... UMS (USB Mass Storage Class) File system ......................................................... FAT16, FAT32 Maximum memory support .......................................... < 160GB Main Unit Power supply .......................................... 110-240V, ~50-60 Hz; Power consumption ........................................................... 55 W Standby power consumption ......................................... ≤ 0.9 W Dimensions (WxHxD) ................................ 360 x 58 x 303(mm) Weight .................................................................\ .............2.3 kg Speakers System ........................................................... full range satellite Speaker impedance ......................................................... 3 ohm Speaker drivers ...................................................... 3 full range Frequency response ...........................................150 Hz-20 kHz Dimensions (WxHxD) ................................ 100 x 100 x 75(mm) Weight .......................................................... 0.30~0.66 kg/each Cable length ........................................................................\ ...... Center ........................................................................\ ........ 1 m Front ........................................................................\ .......... 2 m Rear ........................................................................\ ......... 10 m Subwoofer Impedance ..............................................................\ ....... 12 ohm Speaker drivers ..................................... 133 mm (5.25) woofer Frequency response ...........................................40 Hz-150 kHz Dimensions (WxHxD) ............................ 60 x 267.5 x 265 (mm) Weight .................................................................\ ...........2.65 kg Cable length ........................................................................\ 2 m Laser specification Type .....................................Semiconductor laser GaAIAs (CD) Wave length ............... 645 - 665 nm (DVD), 770 - 800 nm (CD) Output power .............................6 mW (DVD), 7 mW (VCD/CD) Beam divergence .................................................... 60 degrees. Specifi cations subject to change without prior notice. Total output power ................ 300 W RMS (30% THD) (for:/12)
