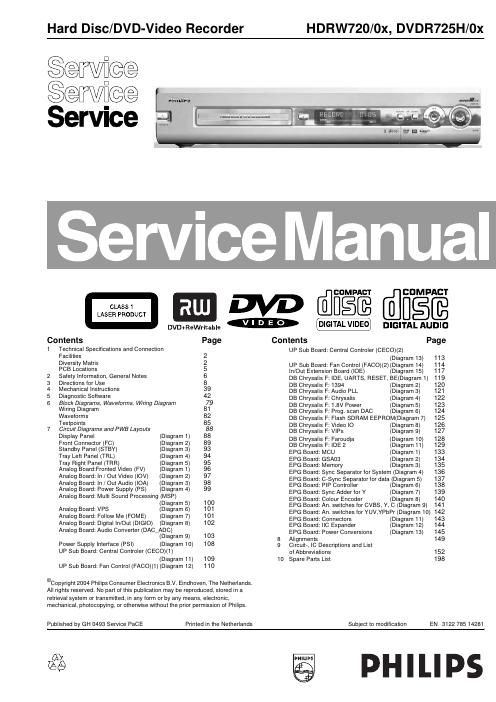

Philips hdrw 720

This is the 211 pages manual for philips hdrw 720.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 211

Extracted text from philips hdrw 720 (Ocr-read)

Page 1

Technical Specifications and Connection Facilities EN 2 HDRW720/0x, DVDR725H/0x 1. 1. Technical Specifications and Connection Facilities 1.1 Diversity Matrix 1.2 General: Mains voltage : 198V-276V Mains frequency : 43 Hz - 63Hz Power consumption mains : 28 W Power consumption standby : < 7 W Power consumption low power stand-by : < 3 W 1.3 RF Tuner Test equipment:Fluke 54200 TV Signal generator Test streams:PAL BG Philips Standard test pattern 1.3.1 System: PAL B/G, PAL D/K, SECAM L/L, PAL I 1.3.2 RF - Loop Through: Frequency range : 45 MHz - 860 MHz G a i n : ( A N T I N - A N T O U T ) : - 6 d B t o 0 d B 1.3.3 Radio Interference: input voltage /3 tone method (+40 dB min) : no limit 1.3.4 Receiver: PLL tuning with AFC for optimum reception Frequency range: : 45.25 MHz - 857 MHz Sen sitivity at 40 dB S/N : ≥ 60dBµV at 75 Ω (video unweighted ) 1.3.5 Video Performance: Channel 25 / 503,25 MHz, Test pattern: PAL BG PHILIPS standard test pattern, RF Level 74 dBV Measured on SCART 1 Frequency response: : 0 - 4.00 MHz +0-4dB Group delay ( 0.1 MHz - 4.4 MHz ) : 0 nsec ± 150nsec 1.3.6 Audio Performance: Audio Performance Analogue - HiFi: Frequency response at SCART 1 (L+R) output: : 100 Hz - 12 kHz / 0± 3dB S/N according to DIN 45405, 7, 1967 : and PHILIPS standard test pattern video signal: : FM: ≥ 50dB; AM ≥ 45dB, unweighted Harmonic distortion ( 1 kHz, ± 25 kHz deviation ): : FM ≤ 1.5%; AM ≤ 2% Audio Performance NICAM: Frequency response at SCART 1(L+R) output: : 40 Hz - 15 kHz 0 ± 3dB S/N according to DIN 45405, 7, 1967 : and PHILIPS standard test pattern video signal: : ≥ 60 dB unweighted Harmonic distortion (1 kHz): : ≤ 0.5 % 1.3.7 Tuning Automatic Search Tuning scanning time without antenna : typ. 3 min. PAL stop level (vision carrier) : ≥ 37dBµV Maximum tuning error of a recalled program :± 62.5 kHz Maximum tuning error during operation :± 100 kHz Tuning Principle automatic B,G, I, DK and L/Ldetection HDRW720/00 HDRW720/02 HDRW720/05 DVDR725H/00 DVDR725H/02 DVDR725H/05 Front Board PBAS DC 04 E1 X XXXX X Analog Board PBAS AB HDD E1 X XXX PBAS AB HDD E2 XX Power Supply Interface PBAS PSI SUB X XXXX X UP Sub PWB PBAS UP SUB HDD E1 X XXXX X Digital Board PBAS CHRY F EF3_AV3 X XXXX X In / Out Extension Board PCB ASSY IOE CST E1 X XXXX X EPG Board PBAS EPG MODULE EUROXXXXXX Basic Engine VAD8031/01 (AV3) X XX VAD8041/01 (AV3.5) X XXXX X Power Supply Module AC6220 B X XXXX X
