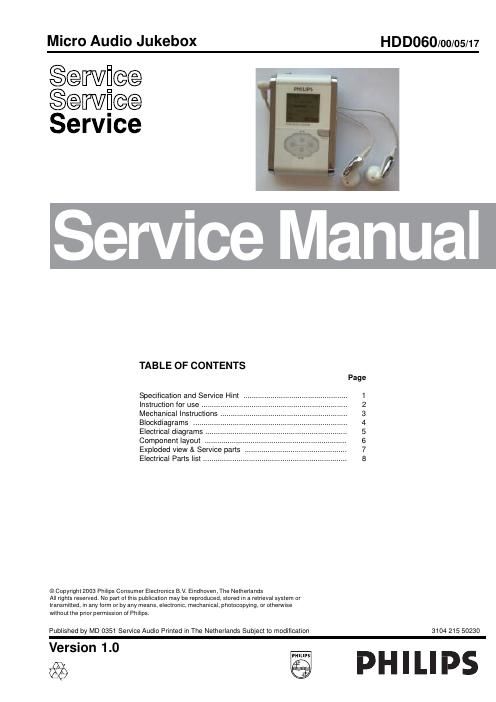

Philips hdd 060 service manual

Page 2

1-1
TECHNICAL SPECIFICATION and SERVICE HINT

General Headphone out (headphone output load 2x16 ohm)
Dimensions (WxLx H) :54.3x84,5x18,3mm Maximum output power :+/-10mW

:2,2x3,4x0,7inch Frequency response :20Hz - 20kHz
Weight : 93g. 3.30z SNR (A-wght) :80dB typ.
Output power :2 x 5mW (16 ohm) THD (1 kHz) :0,01% » 0.1%
Frequency responce :20 - 20.000Hz Left-Right Channel Separation :32dB typ.
Equalizer :5 band DSP controlled Left-Flight Channel Balance :0,5dB
Hard disk :1,0 micro HDD Volume control :+/-1dB steps
Capacity :1 563
Display :BIack/White

2128 x 96 pixels Supported playback format
Backlight :White Led
Battery :750mAh Lithium |on(Li-Ion) MP3 :8 - 320 Kbps and VBR
Battery life time :>10hr WMA :32 - 192 Kbps
File transfer rate using USB :800kbyte/s Sample rates :8, 11.025, 16, 22.050
Battery charging currunt :600 -700mA :32, 44.1. 48
Maximum charging time :2,5hr |D3-tag support : Yes
Battery cutoff voltage :3.4V

PC Connectivity :USB

Connections :Stereo headphone

:Mini USB (B-type) File Transfer :

:DC charger input via PHILIPS Digital Media Manager for music

playback or Windows Explorer for general data

Battery level detection (music playback disabled)

Firmware and software upgrades

Detection Level Typ.

For the best interaction between your HDD and
3-step to 2-step voltage 3.95V your PC. check www.philips.com/support for the
latest upgrades available.

2-step to 1-step voltage 3,8V
Accessories
1-step to O-step voltage 3,7V
Low Batt. Warning voltage 3,55V Accessories for HDD060
/00C /05 /17
Force Power Off voltage 3,4V

AY3192 AC/DC Adaptor X
3140118 33800

Current consumption

AY3192 AC/DC Adaptor X
3140118 33810

DC-IN SUPPLY (5.0V)

AY3192 AC/DC Adaptor X
Battery Charging Current GOOmA typ. 3140 118 33820
BATT. SUPPLY (4,8V) Headphone HE570/77T X X X
9082 100 02543
Power Off 240uA
USB Cable X X X
Ldle with LCD Backlight on 50mAtyp. 3140 110 22410

Playback without HDD reading 50mA

Playback with HDD reading 350mA

File tranfer using USB1.1 350mA

Service Hint

To replace the Hard disk (HDD) please follow the next instructions:

- Replace the HDD (the delivered HDD are empty and formatted).

- Start up the device.

- Connect the device via USB to the computer and start up the Digital Media Manager (DMM).
---The DMM start to make the new structure on, and an empty database.
