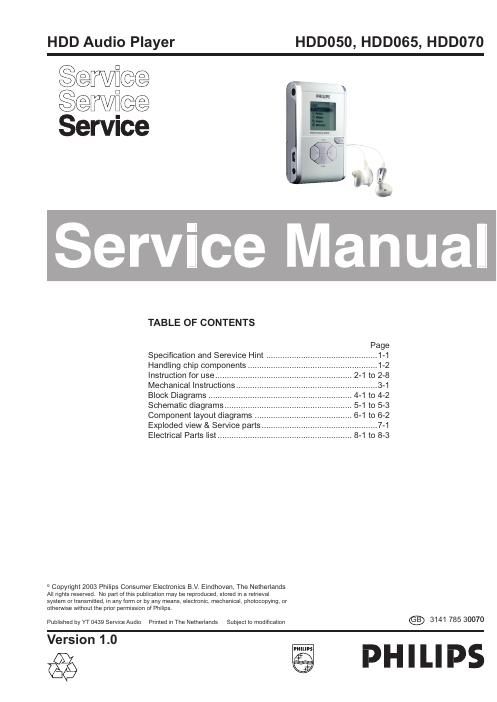

Page 1

HDD Audio Player HDD050, HDD065, HDD070

Service
gamete
Servrce

ervice

17\BI_E ()F CIJBFTEBTTS

Page

Specification and Serevice Hint .. ....1-1

Handling chip components ....1-2
Instruction for use ................. 2-1 to 2-8
Mechanical lnstructions.. .............. 3-1
Block Diagrams ....... 4-1 to 4-2
Schematic diagrams 5-1 to 5-3
Component layout diagrams 6-1 to 6-2
Exploded view & Service parts ........ 7-1
Electrical Parts list ................... .. 8-1 to 8-3

9 Copyright 2003 Philips Consumer Electronics B.V. Eindhoven, The Netherlands

All rights reserved. No part of this publication may be reproduced, stored in a retrieval

system or transmitted, in any form or by any means, electronic, mechanical, photocopying, or

othewvise without the prior permission of Philips.

Published by YT 0439 Service Audio Printed in The Netherlands Subject to modification ® 3141 785 30070

Version 1.0

2% PHILIPS

Page 2

TECHNICAL SPECIFICATION and SERVICE HINTS

General

Headphone out (headphone output load 2x16 ohm)

Dimensions (WxLx H)

: 54,3x84,5x18,3mm

: 2,2x3,4x0,7inch

Weight

Output power
Frequency responce
Equalizer

Hard disk

Capacity

: 93g. (3.302)

:2 x 5mW (16 ohm)
:20 - 20.000Hz

: 5 bandDSP controlled
: 10" micro HDD
:2,0GB (HDDO70)

:2,0GB (HDD065)
; 1,0GB (HD0050)

Display

: Black/White

: 128 x 96 pixels

Backlight

Battery

Battery life time

File transfer rate using USB
Batter charging currunt
Maximum charging time
Battery cutoff voltage

Connections

: WhiteLed

: 750mAh Lithium Ion
: >10hr

: 800kbyte/s

: 600 - 700mA

: 2,5hr

: 3,4V

: Stereoheadphone

: Mini USB (B-type)
: DC charger input

Battery level detection

Maximum output power : +/-10mW
Frequency response : 20Hz - 20kHz
SNR (A-wght) : 80dB typ.
THD (1kHz) : 0,01% - O,1%
Left-Right Channel Separation : 32dB typ.
Left-Right Channel Balance : 0,5dB

Volume control : +/-1dB steps

Supported playback format

MP3 :8 - 320 Kbps and VBR

WMA : 32 - 192 Kbps

Sample rates : 8, 11.025, 16, 22.050
: 32, 44.1, 48

IDS-tag support : Yes

PC Connectivity : USB

File Transfer :
via PHILIPS Digital Media Manager for music
playback or Windows Explorer for general data
(music playback disabled)

Firmware and software upgrades

Detection Level Typ.
3-step to 2-step voltage 3,95V
2-step to 1-step voltage 3,8V
1-step to O-step voltage 3,7V
Low Batt. Warning voltage 3,55V
Force Power Off voltage 3,4V
Current consumption
DC-IN SUPPLY (5.0V)
Battery Charging Current 600mA typ.
BATT. SUPPLY (4,8V)
Power Off 240uA
Ldle with LCD Backlight on 50mAtyp.

Playback without HDD reading 50mA

Playback with HDD reading

350mA

File tranfer using USB1.1

350mA

For the best interaction between your HDD and
your PC. check www.philips.comlsupport for the
latest upgrades available.

Accessories

HDD050, HDD065, HDD070
[00 [05 I10 /07, I17

Accessories for

AY3192/00 AC/DC Adaptor
3140118 33801

AY3192/05 AC/DC Adaptor
3140118 33811

AY3192/10 AC/DC Adaptor
3140178 30061

AY3192/17 AC/DC Adaptor
3140118 33821

Headphone HE570/77T
9082 100 02543

Neck Strap
31 O4 200 05631

Pouch HDD070
3104 200 52381

CD Rom HDD070
3104 20910191

X

Service Hints

To replace the Hard disk (HDD) please follow the next

instructions:

- Replace the HDD (the delivered HDD are empty and
formatted).

- Start up the device.

- Connect the device via USB to the computer and start
up the Digital Media Manager (DMM)

---The DMM start to make the new structure on, and an

empty database.
