Philips fx 50 fx 55 fx x 78
This is the 42 pages manual for philips fx 50 fx 55 fx x 78.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from philips fx 50 fx 55 fx x 78 (Ocr-read)
Page 1

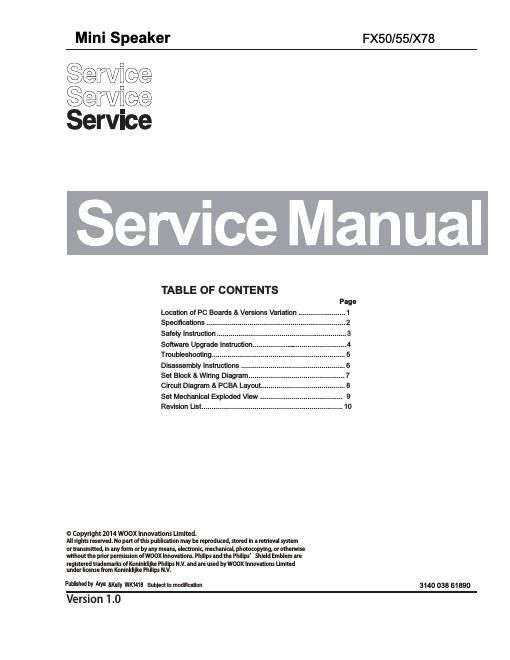

Mini Speaker
FX50/55/X78
Service
Service
SerVIce
ervice Manua
TABLE OF CONTENTS
Location of PC Boards & Versions Variation
Specifications ...........................................
Safety Instruction .................................................................. 3
Software Upgrade Instruction 4
Troubleshooting... 5
Disassembly Instructions 6
7
8
9
Set Block & Wiring Diagram.....
Circuit Diagram & PCBA Layou
Set Mechanical Exploded View
Revision List ........................................................................ 10
© Copyright 2014 WOOX Innovations Limited.
All rights reserved, No part of this publication may be reproduced, stored in a retrieval system
or transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise
without the prior permission ofWOOX Innovations. Philips and the Philips' Shield Emblem are
registered trademarks of Koninklijke Philips N.V. and are used by WOOX Innovations Limited
under license from Koninklijke Philips N.V.
Published by Arya EKelly wmm Subject to modification
3140 038 61890
Version 1.0
