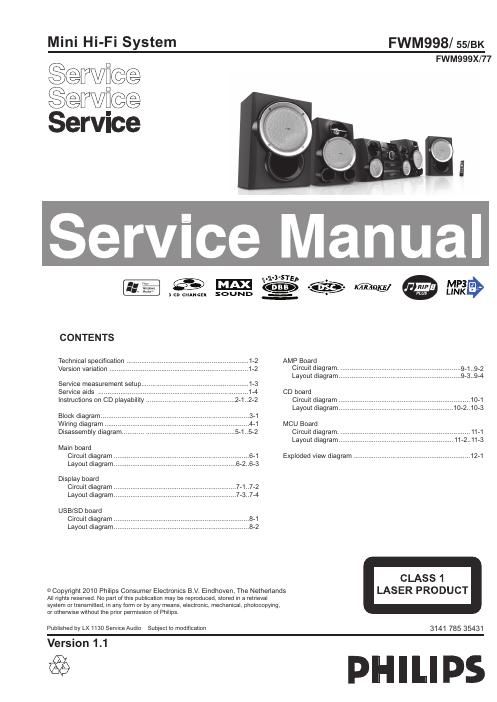

Page 1

Mini Hi-Fi System FWM998/ 55/BK

$erv§ce
$eirvgce
SerVIce

1 CD CHANGER SOUND

CONTENTS

Technical specification AMP Board

Version variation ...... Circuit diagram. ................................................................. 9-1..9-2
Layout diagram .................................................................. 9-3..9-4

Service measurement setu

Service aids .................. CD board

Instructions on CD playability ................................................ 2»1..2-2 Circuit diagram .. .10-1

Layout diagram .. .10-3

Block diagram.
Wiring diagram ..
Disassembly diagra

MCU Board
Circuit diagram. .
Layout diagram.

Main board
Circuit diagram
Layout diagram

Exploded view diagram ............................................................... 12-1
.6-2. .6»3

Display board
Circuit diagram .7-1..7»2
Layout diagram .7-3..7-4

USB/SD board

Circuit diagram ......................................................................... 8-1
Layout diagram ......................................................................... 8»2
CLASS 1
©Copyright 2010 Philips Consumer Electronics B.V. Eindhoven, The Netherlands LASER PRODUCT

All rights reserved. No part of this publication may be reproduced, stored in a retrieval
system or transmitted, in any form or by any means, electronic, mechanical, photocopying,
or othenivise without the prior permission of Philips.

Published by LX1130 Service Audio Subject to modification 3141 785 35431

Version 1.1

£39 PHILIPS

Page 2

TECHNICAL SPECIFICATION

Sound

- Output Power: 14000W PMPO

- Total Sound Power (RMS): 1300 W

- Sound Enhancement: MAX Sound. Dynamic Bass
Boost 3 steps. Incredible Surround. Digital Sound
Control 4 modes. Virtual Ambience Control

Loudspeakers

- Main Speaker: Bass Reflex Speaker System. 2 way.
2" tweeter

- Subwoofer type: Passive

- Subwoofer driver: 10" woofer

- Number of Loudspeakers: 6

Audio Playback

- Loader Type: 3 CD Carousel

- Number of Discs: 3

- Playback Media: CD. CD-R. CD-RW. MP3-CD.
WMA-CD, SD Card. USB flash drive

- Disc Playback Modes: 40-Track Programmable.
Repeadone/disk/program. Shuffle Play

- USB Direct/ SD Modes: Fast Backward/Fast
Forward. Play/Pause. Previous/Next. Repeat.
Shuffle

Audio Recording

- Recording Media: USB device. SD/MMC card

- USB recording sources: CD. Tuner. Aux.
Microphone in. SD Card

- SD card recording sources: Aux. CD. Microphone
in. Tuner. USB device

- USB / SD card recording modes: Delete, Instant
record. Progammed tracks. Schedule radio
program. Single disc. Single track

Tuner/Reception/Transmission

- Auto digital tuning

- Station presets: 40

- Tuner Bands: FM, MW

- Tuner Enhancements: Auto Store. Easy Set (Plug &

Play)

Connectivity

- Audio Connections: RCA Aux in. 3.5mm stereo
line in -MP3 link

- USB: USB host

- Microphone: Dual Microphone sockets

- Other connections: FM Antenna. MW Antenna

Convenience

- Alarms: CD Alarm. Radio Alarm. USB alarm. Sleep
timer

- Clock: On main display

- Display Type: FTD

- Karaoke: MIC volume. Echo control

Accessories

- Remote control: 36-key with 2xAAA batteries

- User Manual: Spanish. B-Portuguese

- Guarantee booklet: Global version

- Included accessories: FM/MW Antenna. Batteries
for remote control. *Flat pin adaptor

- Quick start guide: Spanish. B-Portuguese

- Cables: MP3 Line in cable

Dimensions
- Set dimensions (W x H x D): 265 x 359 x 353 mm
- Main speaker dimensions (W x H x D):
263 x 447 x 360 mm
- Subwoofer dimensions (W x H x D):
337 x 491x 360 mm
- Surround Speaker dimensions (W x H x D):
208 x 359 x 301 mm
- Weight incl. Packaging: 51.57 kg
- Packaging dimensions (W x H x D):
1085 x 562 x 786 mm

Power
- Power supply: 100-240VAC, 50/60Hz

VERSION VARIATION
Type lVersions: FWM998
Board in used: Service policy 55 (00 IBK les /94 /98
USB BOARD C/M C/M
MAIN BOARD C/M C/M
AMP BOARD C C/M
DISPLAY BOARD C/M C/M
CD BOARD C/M C/M
MCU BOARD C/M C/M
SD BOARD C/M C/M
Type lVersions: FWM998
Features eature diffrence 155 100 I77 IBK l93 l94 l98
RDS
VOLTAGE SELECTOR
ECO STANDBY - DARK

M -- Module Lever Repair
«I -- Used

* TIPS : C -- Component Lever Repair.
