Extracted text from philips fwm 998 55 bk (Ocr-read)

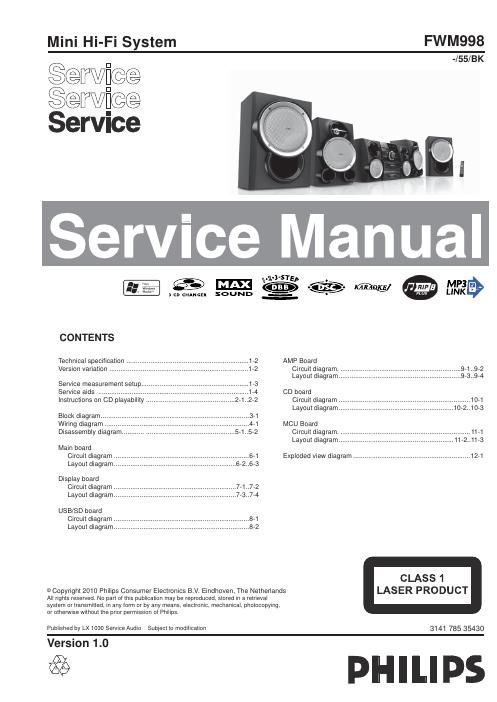

Page 1
Sound- Output Power: 14000W PMPO - Total Sound Power (RMS): 1300 W - Sound Enhancement: MAX Sound, Dynamic Bass Boost 3 steps, Incredible Surround, Digital Sound Control 4 modes, Virtual Ambience Control Loudspeakers- Main Speaker: Bass Reflex Speaker System, 2 way, 2" tweeter - Subwoofer type: Passive - Subwoofer driver: 10" woofer - Number of Loudspeakers: 6 Audio Playback- Loader Type: 3 CD Carousel - Number of Discs: 3 - Playback Media: CD, CD-R, CD-RW, MP3-CD, WMA-CD, SD Card, USB flash drive - Disc Playback Modes: 40-Track Programmable, Repeat/one/disk/program, Shuffle Play - USB Direct / SD Modes: Fast Backward/Fast Forward, Play/Pause, Previous/Next, Repeat, Shuffle Audio Recording- Recording Media: USB device, SD/MMC card - USB recording sources: CD, Tuner, Aux, Microphone in, SD Card - SD card recording sources: Aux, CD, Microphone in, Tuner, USB device - USB / SD card recording modes: Delete, Instant record, Progammed tracks, Schedule radio program, Single disc, Single track Tuner/Reception/Transmission- Auto digital tuning - Station presets: 40 - Tuner Bands: FM, MW - Tuner Enhancements: Auto Store, Easy Set (Plug &Play) Connectivity- Audio Connections: RCA Aux in, 3.5mm stereo line in -MP3 link - USB: USB host - Microphone: Dual Microphone sockets - Other connections: FM Antenna, MW Antenna Convenience- Alarms: CD Alarm, Radio Alarm, USB alarm, Sleep timer - Clock: On main display - Display Type: FTD - Karaoke: MIC volume, Echo control Accessories- Remote control: 36-key with 2xAAA batteries - User Manual: Spanish, B-Portuguese - Guarantee booklet: Global version - Included accessories: FM/MW Antenna, Batteries for remote control, *Flat pin adaptor - Quick start guide: Spanish, B-Portuguese - Cables: MP3 Line in cable Dimensions- Set dimensions (W x H x D): 265 x 359 x 353 mm - Main speaker dimensions (W x H x D): 263 x 447 x 360 mm - Subwoofer dimensions (W x H x D): 337 x 491 x 360 mm - Surround Speaker dimensions (W x H x D): 208 x 359 x 301 mm - Weight incl. Packaging: 51.57 kg - Packaging dimensions (W x H x D): 1085x 562 x 786 mm Power- Power supply: 100-240VAC, 50/60Hz- TECHNICAL SPECIFICATION 1 - 2 Type /Versions: Features Board in used:FWM998 Service policy MAIN BOARD * TIPS : C -- Component Lever Repair. M -- Module Lever Repair -- Used /55 /00 8 9 / 3 9 / K B / Feature diffrence RDS VOLTAGE SELECTOR ECO STANDBY - DARK Type /Versions: FWM998 /55 /00 /77 8 9 / 3 9 / K B / VERSION VARIATION AMP BOARD 4 9 / C/M C/MC/M C/MC/M C C/MC/M C/M C/M C/M C/M 4 9 / DISPLAY BOARD CD BOARD MCU BOARD USB BOARD SD BOARDC/MC/M
Page 2
1-3 LF Generator e.g. PM5110 Recorder Use Universal Test Cassette CrO2SBC419 4822 397 30069 LEVEL METERe.g. Sennheiser UPM550 with FF-filter S/N and distortion met e e.g. Sound Technology ST170 L R DUT or Universal Test Cassette FeSBC420 4822 397 30071 LEVEL METERe.g. Sennheiser UPM550 with FF -filter S/N and distortion metere.g. Sound Technology ST1700B L R DUT CD Use Audio Signal Disc (replaces test disc 3)SBC429 4822 397 30184 Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT S/N and distortion meter e.g. Sound Technology ST1700B Frame aeriale.g. 7122 707 89001 Tuner AM (MW,LW) To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday´s cage. Use a bandpass filter (or at least a high pass filter with 250Hz) to eliminate hum (50Hz, 100Hz). RF Generator e.g. PM5326 Ri=50 : Bandpass 250Hz-15kHz e.g. 7122 707 48001 LF Voltmeter e.g. PM2534 DUT RF Generator e.g. PM5326 S/N and distortion meter e.g. Sound Technology ST1700B Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance from the pilottone (19kHz, 38kHz). Ri=50 : Tuner FM MEASUREMENT SETUP
