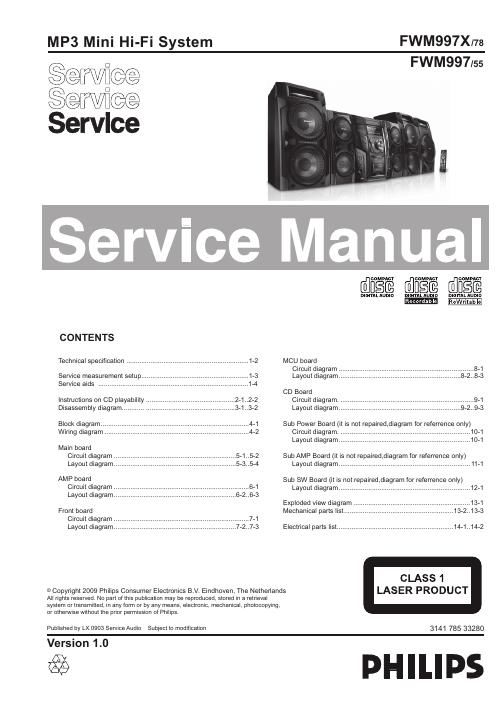

Philips fwm 997 service manual

Page 1

AMPLIFIER RMS output power Total output power ............................... 800 W RMS Signal-to-noise ratio .......................... 67 dB A (IEC) Frequency response .......................... 60 – 16000 Hz Input sensitivity AUX ................................................. 1500mV/2000mV Output Speakers .................................................................... 3Ω (1) (3Ω, 1 kHz, 10% THD) CD/MP3-CD PLAYER Number of programmable tracks ......................... 40 Frequency response ............. 60 – 16000 Hz -3dB Signal-to-noise ratio ....................................... 75 dB A Channel separation .......................... 50 dB (1 kHz) Total harmonic distor tion ................................. < 1.5% MPEG 1 Layer 3 (MP3-CD) .......... MPEG AUDIO MP3-CD bit rate ....................................... 32-256 kbps (128 kbps advised) Sampling frequencies ....................... 32, 44.1, 48 kHz TUNER FM wave range ................................... 87.5 – 108 MHz AM wave range (9 kHz) ............... 531 – 1602 kHz AM wave range (10 kHz) ............. 530 – 1700 kHz Tuning grid ............................................................ 9/10 kHz Number of presets ........................................................ 40 Antenna FM ....................................................................... 75Ω wire AM .............................................................. Loop antenna USB PLAYER USB ................................................................... 12Mb/s,V1.1 ......................................... suppor t MP3 and WMA files Number of albums/folders ................. maximum 99 Number of tracks/titles ...................... maximum 999FRONT SPEAKERS System 4-way; double por t bass reflex Impedance ............................................................... 2 x 6Ω Woofer ................................................................... 2 x 5.25 Tweeter ................................................................... 2 x 1.75 Output power ........................ 2 x (100 W+ 100 W) Dimensions (w x h x d) . 225 x 430 x 275 (mm) Weight .......................................................... 4.928 kg each REAR SPEAKERS System full range satellite Impedance ....................................................................... 3Ω Speaker driver ........................................... 4 + 4 (fake) Frequency response ............................ 150Hz-16KHz Output power ................................................ 2 x 100 W Dimensions (w x h x d) ....... 142.5 x 345 x 171.3 Weight .............................................................. 2.1 kg each SUBWOOFER AC Power ........................... 110– 127 / 220 – 240 V; ....................................................... 50/60 Hz, Switchable Power Consumption Active ........................................................................ 100 W Impedance ........................................................................ 6Ω Subwoofer driver ............................................................. 8 Output power ......................................................... 200 W Dimensions (w x h x d)..... 274 x 430 x 342.3 (mm) Weight ......................................................................... 11.2 kg GENERAL Material/finish ................................... Polystyrene/Metal AC Power (for the main unit) ....................................... .............................................. 110 – 127 / 220 – 240 V; ....................................................... 50/60 Hz, Switchable Power Consumption Active .......................................................................... 90 W Standby ..................................................................≤ 20 W Dimensions (w x h x d) .. 265 x 345 x 382 (mm) Weight (without speakers) ........................... 8.671 kg Specifications and external appearance are subject to change without notice. TECHNICAL SPECIFICATION 1 - 2
